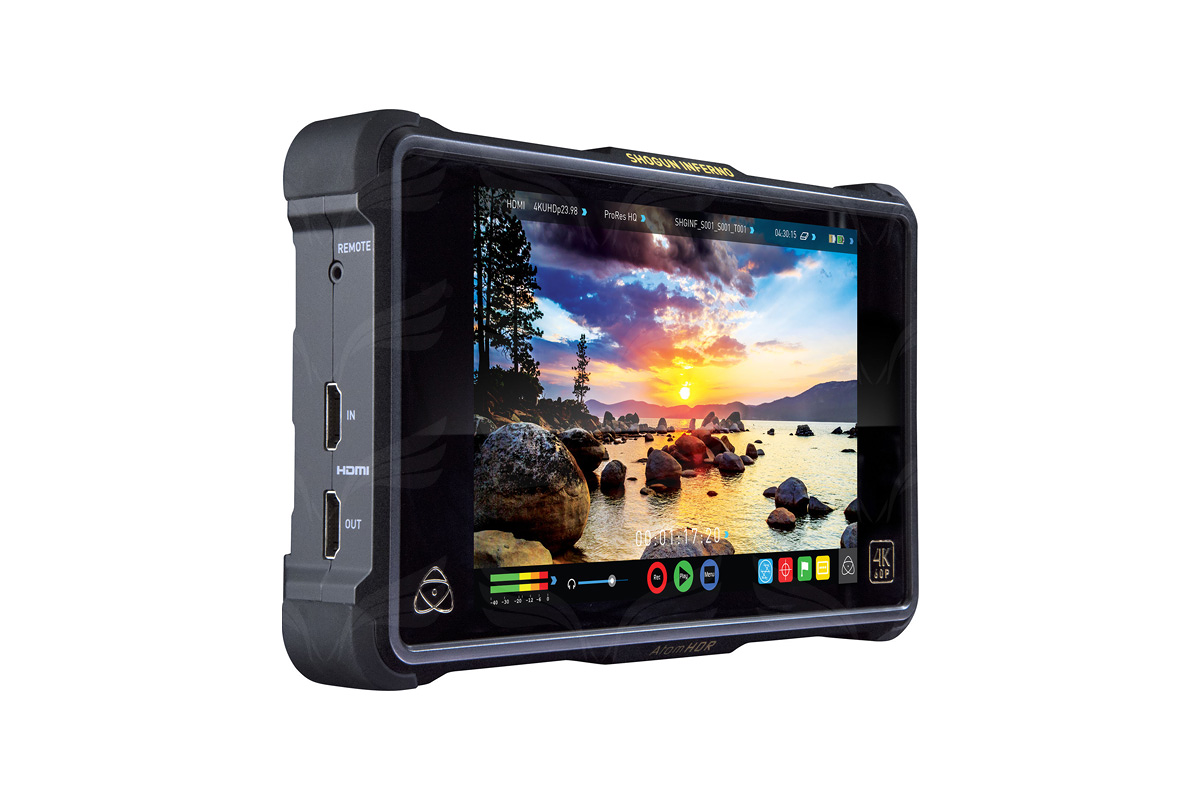

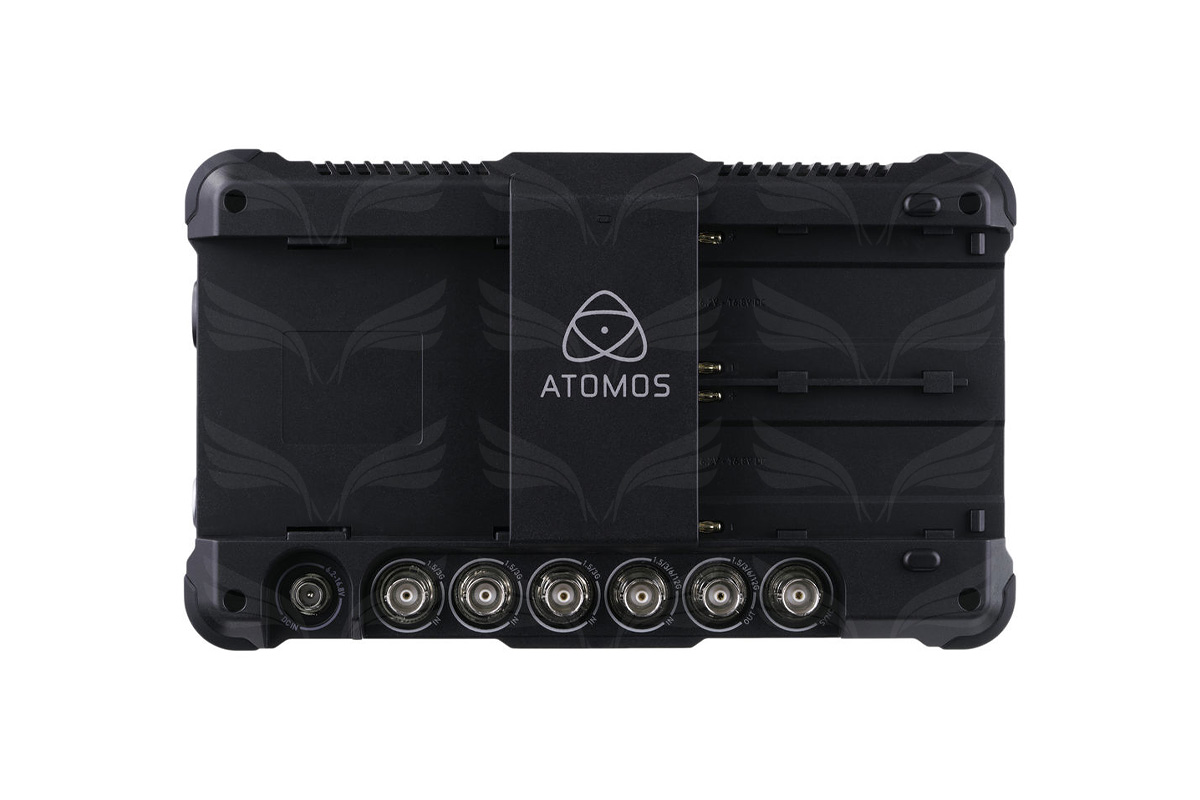

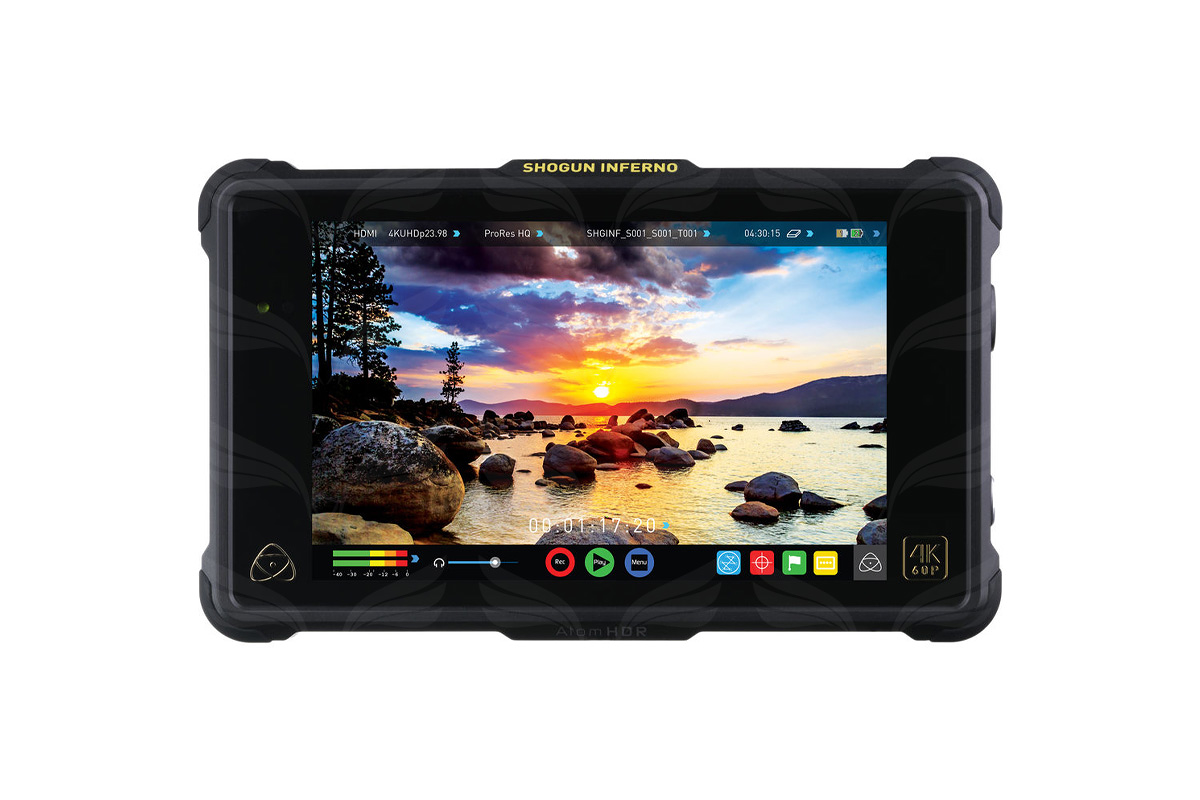

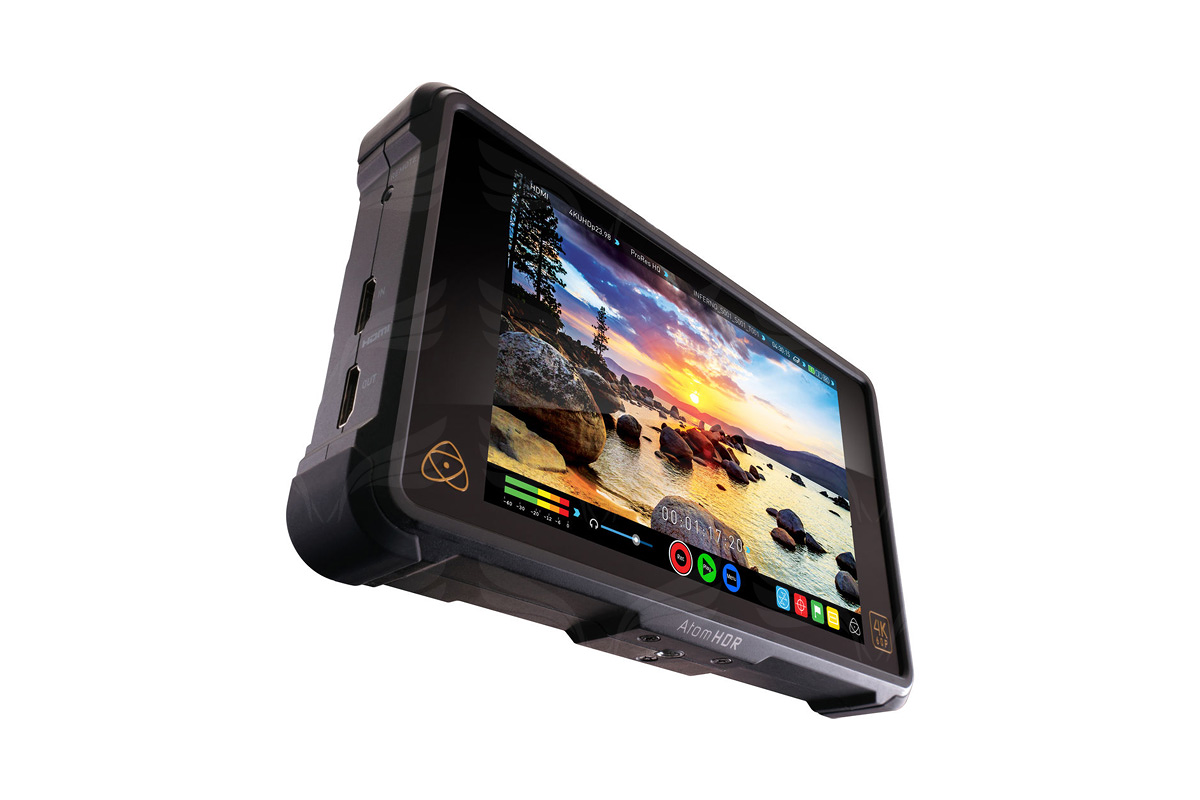

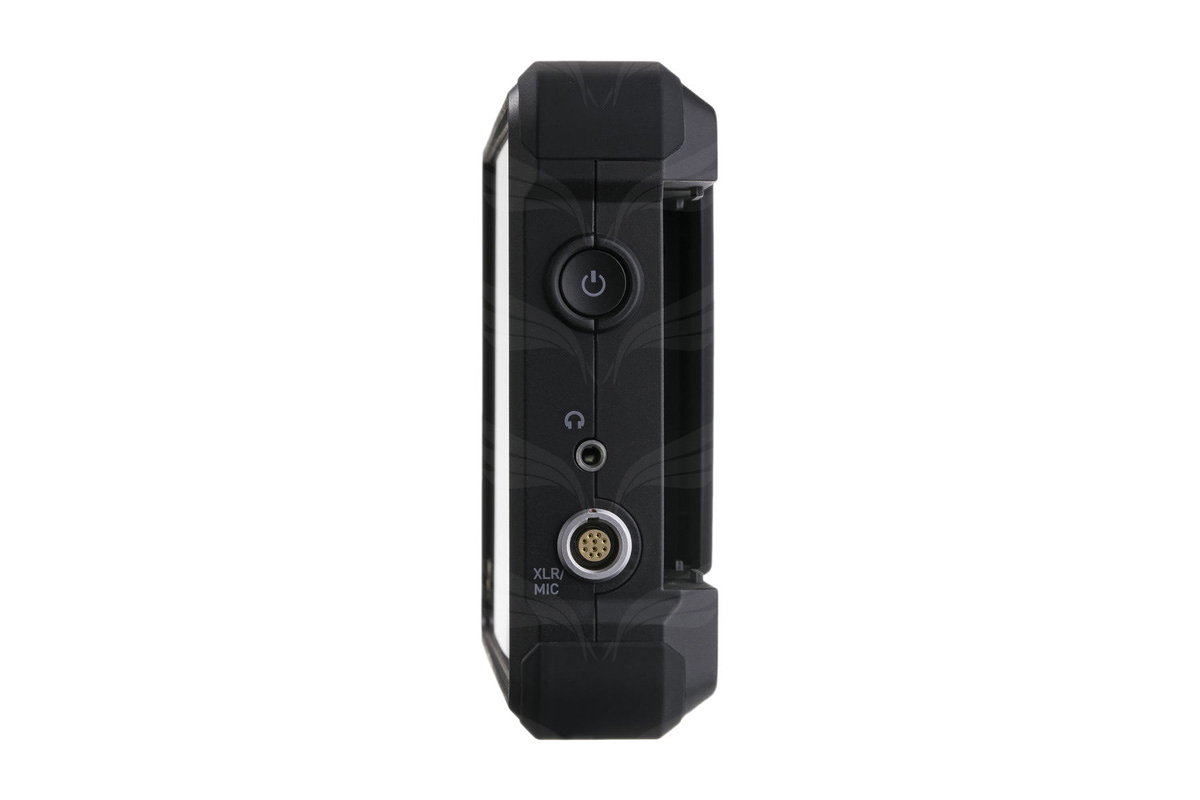

Atomos Shogun Inferno 7" įrašomasis monitorius / 4K HDMI/Quad 3G-SDI/12G-SDI Recording Monitor

Kaina:

1 199 €

su PVM

Kameroms / nešiojami

Production / Broadcast Solutions

HDR Cinema Monitor Recorder

AtomX Series

Converters

Accessories

Prekės aprašymas

Atomos Shogun Inferno yra 7 colių, 1920 x 1200 kameros įrašomasis monitorius, kuriame 4K įrašymas derinamas su 10 bitų FRC skydeliu, palaikančiu HDR (log) įrašų vaizdavimą bei aukštą raišką peržiūroje. Monitorius naudoja 4K HDMI ir 12G-SDI įvestį, kad palaikytų iki UHD 4K raiškos (3840 x 2160), esant 60 kadrų per sekundę, įrašant į 2,5 "SSD, naudojant 10 bitų. „Inferno“, skirtingai nuo panašios „Shogun Flame“ versijos, palaiko „Quad 3G-SDI“ įvestį. Taip pat palaiko DCI 4K (4096 x 2160) RAW video srautus per SDI iš tam tikrų „Sony“ ir „Canon“ fotoaparatų, koduodami juos kaip „ProRes“ / „DNxHR“ failus.

Techninė informacija

Display
Type	7.1" (18 cm) IPS capacitive touchscreen
Resolution	1920 x 1200325 ppi
Bit Depth	10-bit (8-bit plus FRC)
Video Aspect Ratio	Native: 16:9
Brightness	1500 cd/m2
LUT Support	3D LUT (.cube file format)
Interface
Inputs	1 x HDMI (2.0)4 x 3G-SDI Quad/Single 12G-SDI (BNC) -1 x Genlock / LTC (BNC)1 x 2.5 mm LANC2 x XLR (included LEMO breakout cable required)
Outputs	1 x HDMI (2.0)1 x 12G-SDI (BNC)2 x XLR Out (included LEMO breakout cable required)1 x 3.5 mm headphone jack
Supported Video Format
Supported Signal	Input: 10- / 8-bit 4:2:2 (dependent on video source)Output: 10- / 8-bit 4:2:2 (dependent on video source)
Input/Output Resolutions	HDMI:2160p 24/25/30/50/601080p 24/25/30/50/60/120/2401080i 50/60720p 50/60SDI:2160p 24/25/30/50/601080p 24/25/30/50/60/1201080psf 24/25/301080i 50/60720p 50/60
Video Signal Conversion	HDMI to SDI:2160p 24/25/30/50/601080p 24/25/30/50/60/100/120/1080i 50/60720p 50/60SDI to HDMI:2160p 24/25/30/50/601080p 24/25/30/50/60/100/1201080i 50/60720p 50/60
Encoding Formats	DCI RAW 4096x2160 from supported cameras(Sony FS700, Sony FS7, Canon C300 MKII, Canon C500):Apple ProRes HQ, 422, LTDNxHR HQX, HQ, SQ, LBUHD 4K (3840 x 2160):Apple ProRes HQ, 422, LTDNxHR HQX, HQ, SQ, LB1920 x 1080Apple ProRes HQ, 422, LTDNxHD 220x, 220, 145, 36
Pulldown Conversion	24/25/30psf to 24/25/30p (2:2 pulldown) 60i to 24p (3:2 pulldown)
Supported Codecs	Raw to ProRes/DNxHRApple ProRes: HQ, 422, LTAVID DNxHR: HQX. HQ, SQ, LBFrame Rates4K DCI / 4K UHD: 24/25/30/50/60pSF: 30/50/60/100/120/200/240pVideo to ProRes/DNxHRApple ProRes HQ, 422, LTAVID DNxHR HQX. HQ, SQ, LBFrame Rates4K DCI / 4K UHD: 24/25/30/50/60pSF: 30/50/60/100/120/200/240p
Supported Audio Formats
HDMI	2- or 8-channel, up to 24-bit (camera dependent)
SDI	Up to 12-channel, 48 kHz, up to 24-bit (camera dependent)
Dynamic Range	>90 dB
Signal Level	Maximum: +24 dBu
Gain	Maximum Analog Gain: +52 dB
Phantom Power	+48 V phantom power for XLR inputs
Remote Operation
HDMI	Auto HDMI triggerSupported Protocols: Canon, Sony, Atomos Open Standard
SDI	SDI trigger camera selectable
LANC	Supports slave configuration
Recording Media
Supported Media	4K2.5" SSDHD High Frame Rate (50/60/120p):2.5" SSD2.5" HDD (7,200 rpm and up) for 1080p 50/60HD (30p and less):2.5" SSD2.5" HDD (5,400 rpm and up)Note: Only use media that has been approved by Atomos
Master Caddy Dock	Interface: 2.5" SATA to USB 2.0/3.0
Supported Applications	Final Cut Pro X/7+Avid Media Composer 5.0+Adobe Premiere 5.5+Grass Valley EDIUS 6.0+Sony Vegas Pro 10+LightworksAutodesk Smoke 2015
XML Support	FCPX XML native, FCP7 supported with conversion(Adobe compatible)
General
Power Requirements	6.2 to 16.8 VDC (battery or DC power input)
Power Consumption	10 to 24 W
Supported Battery Types	2 x Sony L-series
Battery Life	5200 mAh: up to 1.5 hours (monitor and record 4K)7800 mAh: up to 2.2 hours (monitor and record 4K)
Construction	ABS polycarbonate
Dimensions	8.4 x 5 x 1.8" (21.4 x 12.7 x 4.5 cm)
Weight	Without Batteries & Media: 1.4 lb (0.65 kg)With Batteries & Media: 2.4 lb (1.09 kg)
