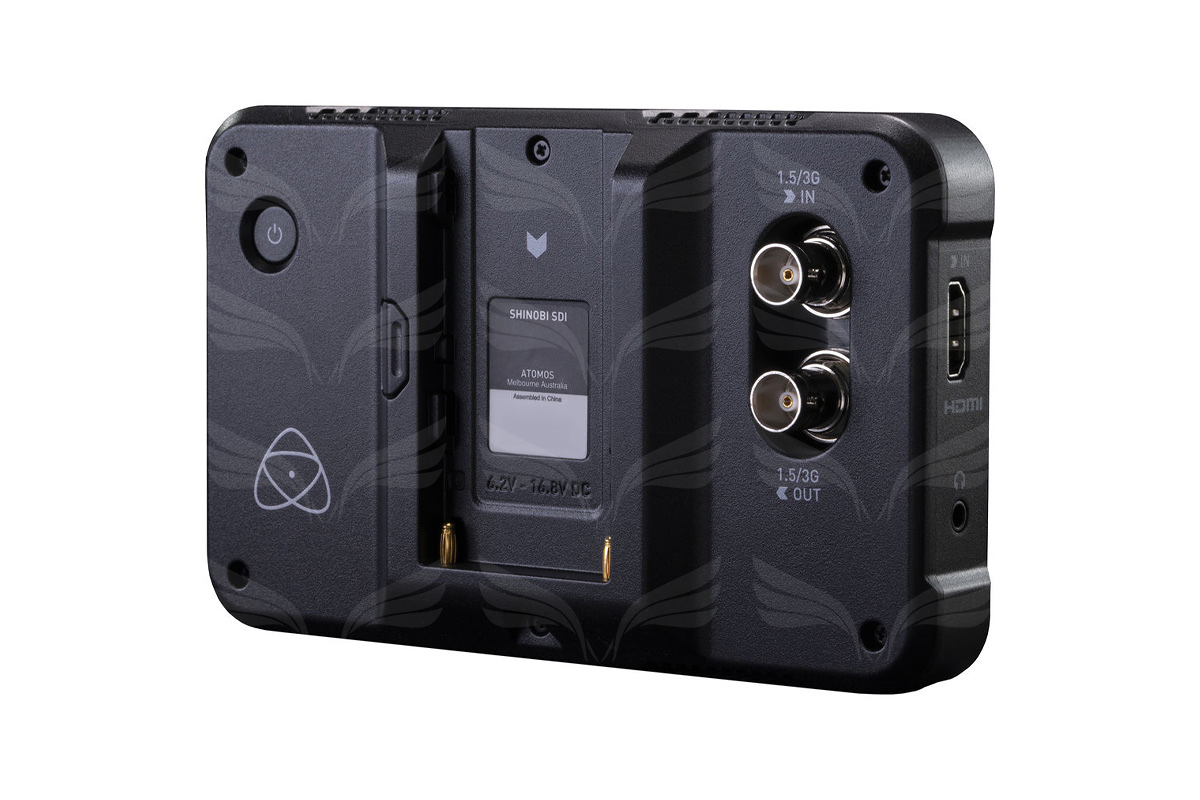

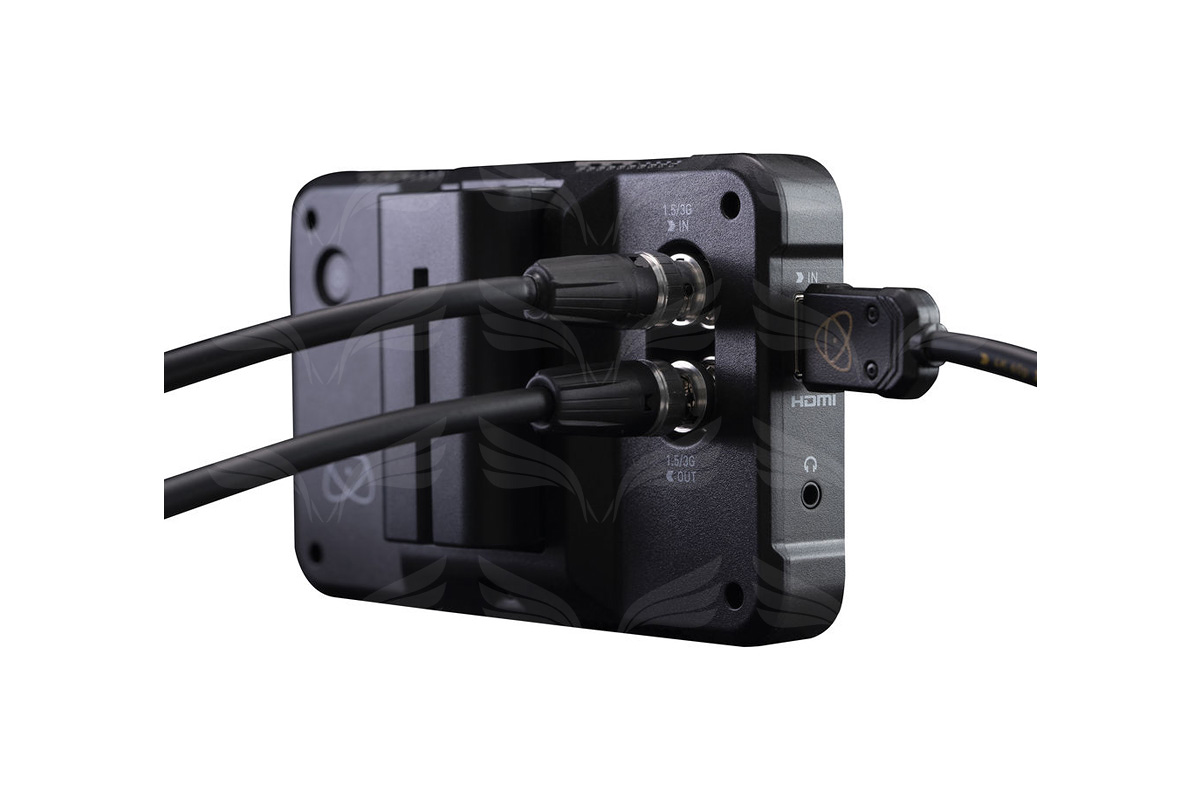

Pagrindinis skirtumas nuo Atomos Shinobi: Atomos Shinobi SDI turi SDI įvestį ir išvestį. SDI suteikia galimybę naudoti iki 300 metrų ilgio laidą vaizdo perdavimui be kokybės nukentėjimo. Taip pat SDI jungtys turi užraktus, laidais kokybiški, užkliuvus, laidas neišsitrauks, vaizdo perdavimas nenukentės, išliks stabilus.
Weight | |
---|---|
Without batteries | 226g / 7.8oz. |
Dimensions (W x H x D mm) | 151 x 91.5 x 31.5mm |
Construction | Polycarbonate ABS |
Mounting points | 1/4”-20 screw mount. 1x top and 1x bottom |
Power | |
---|---|
Operating power | 4 - 7W |
Compatible batteries | NP-F series and supporting accessories. AtomX or other. |
Input voltage (battery) | 6.2V to 16.8V |
Battery time (based on 7.4V) | Standby 2600mAh - 3hrs, 5200mAh - 6hrs, 7800mAh - 12hrs |
Monitor 2600mAh - 1.5hrs, 5200mAh - 3hrs, 7800mAh - 6hrs | |
DC In | via Battery Eliminator |

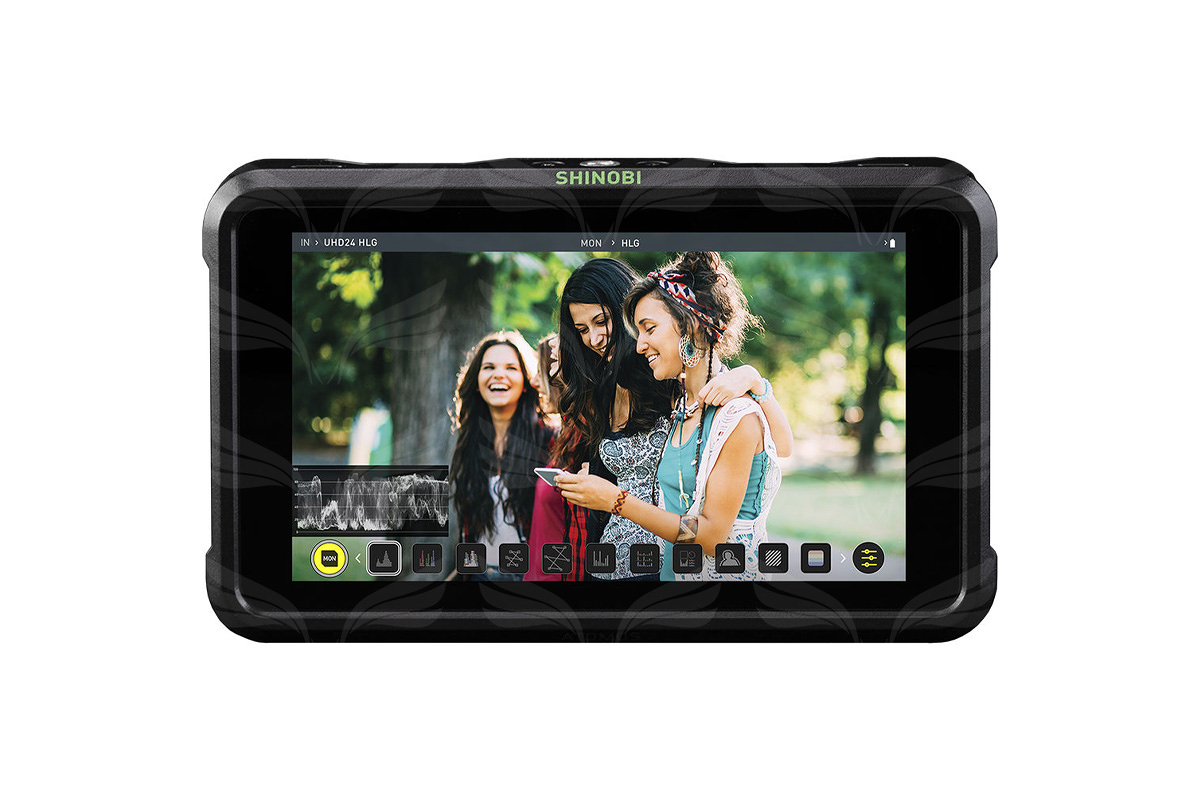

Touchscreen | |
---|---|
Size | 5.2” |
Resolution | 1920 x 1080 |
PPI | 427 |
Aspect ratio | 16:9 native |
Color Gamut | REC709 HDTV |
Look up table (LUT) support | 3D LUT (.cube format) *Extended Support planned |
Anamorphic de-squeeze | 2x, 1.5x, 1.33x |
Technology | IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit |
HDR | |
---|---|
AtomHDR | Yes |
HDR Monitoring (Gamut) | Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, RED Log3G10 /RED LogFilm, FujiFilm F-log, PQ10k, HLG, Nikon N-Log |
HDR Monitoring (Gamma) | Sony SGamut / SGamut3 / SGamut3.cine Canon Cinema / DCI P3 / DCI P3+ Panasonic V Gamut Arri Alexa Wide Gamut Rec709 / BT.2020 JVC RED WideGamut / RED DragonColor / DragonColor2 / RED Color2 / RED Color3 / RED Color4 |
Bit Depth | 10-bit (8+2 FRC) |
Brightness | 1000nit (+/- 10%) |
Screen Mirror/Flip | Horizontal Flip (Selfie mode), Vertical Flip * Landscape/Portrait mode planned for future firmware release |
Anti-reflective | Special AR coating and Anti-fingerprint technology |
Video Input | |
---|---|
SDI | 1 x HD-SDI 1.3G/1.5G |
HDMI | 1 x HDMI (1.4) |
Signal | Up to Uncompressed true 10-bit or 8-bit 422 (camera dependent) |
