Torque three times stronger and noise reduced by 50%. Quick-release structure delivers a smoother and more reliable focusing experience.

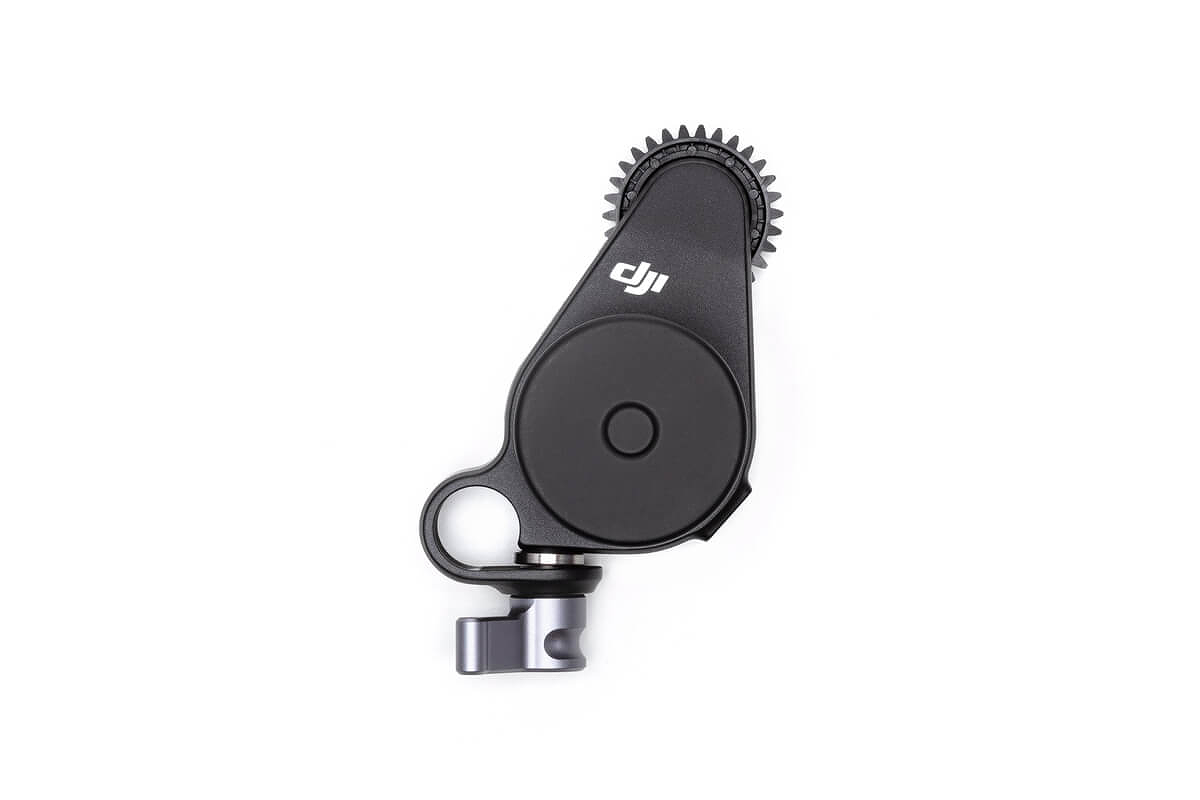

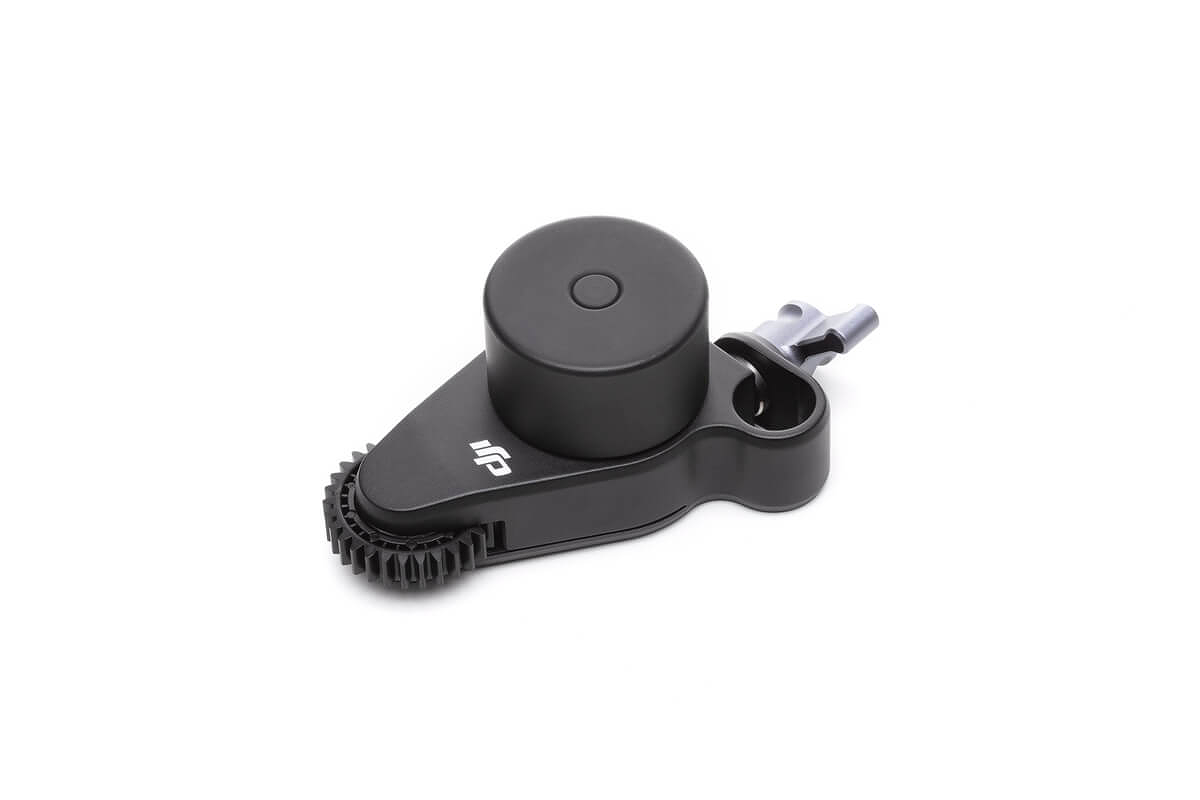

The next-generation DJI RS Focus Motor (2022) provides torque three times stronger (up to 1 N·m), and noise is reduced by 50%. This delivers a smoother focusing experience and avoids affecting audio recording. It also adopts a quick-release structure, allowing it to be assembled easily without any tools for faster use.
Torque three times stronger and noise reduced by 50%. Quick-release structure delivers a smoother and more reliable focusing experience.

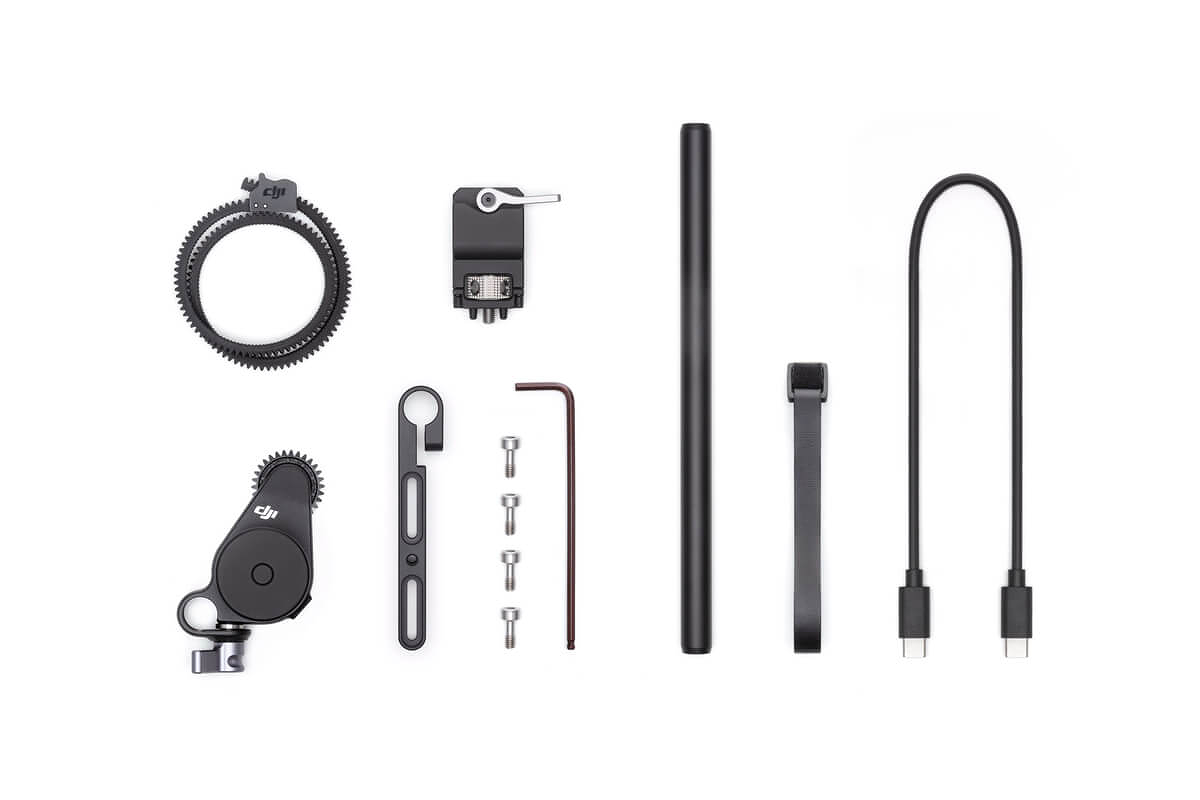

Focus Motor (2022) × 1
Focus Motor Rod Mount Kit Combo × 1
Focus Gear Strip × 1
Multi-Camera Control Cable (USB-C, 30 cm) × 1
M4 Screw (10 mm) × 4
Allen Wrench (3 mm) × 1
Lens-Fastening Strap × 1
Structure:
Weight: 108 g
Dimensions: 80×50×36 mm (L×W×H)
Rod: 12 mm
Specifications:
Max Torque: 1.0 N·m (8 V)
Max Speed: 180 rpm (8 V)
Electrical Properties:
Free Current: 50 mA (5 V)
Stall Current: 2.8 A (8 V)
Operating Voltage: 6 to 17.6 V
Noise:
45 dB
Gear:
Number of Teeth: 30
Module: 0.8
Operating Temperature:
-20° to 45° C (-4° to 113° F)
DJI RS 3 Pro
DJI RS 3
DJI RS 2
DJI RSC 2
DJI Ronin 4D Flex
DJI RS Focus Motor (2022)
The next-generation DJI RS Focus Motor (2022) provides torque three times stronger (up to 1 N·m), and noise is reduced by 50%. This delivers a smoother focusing experience and avoids affecting audio recording. It also adopts a quick-release structure, allowing it to be assembled easily without any tools for faster use.
Camera accessory type | Other |
---|---|
Colour | Black |
Dimensions | 80×50×36 mm |
Operating temperature range | -20° to 45° C |
Unit Gross Weight | 0.3 |
Unit Net Weight | 0.108 |
