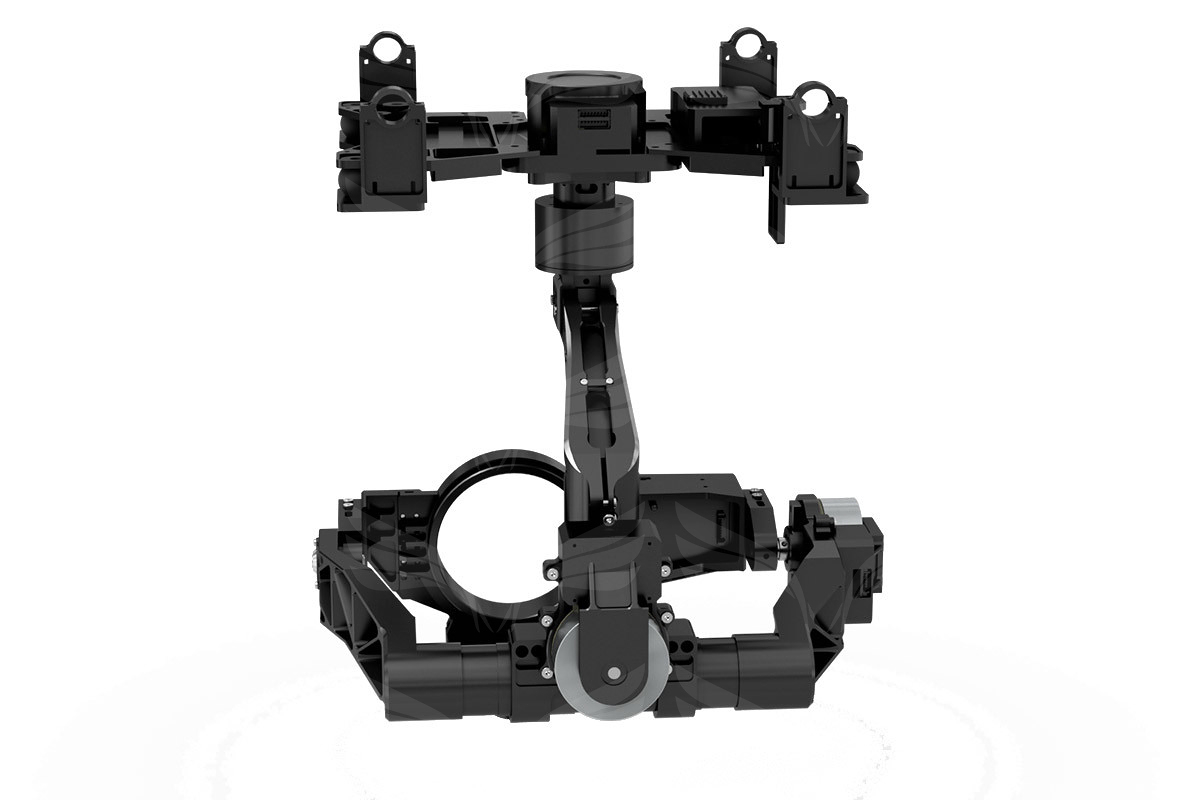

HIGH DEFINITION, PERFECT STABILITY
The Z15-5D III (HD) is a sophisticated gimbal designed specifically for aerial creativity. Its HD video output port and lightweight design enable you to capture beautiful, stable shots for all of your high-level projects.

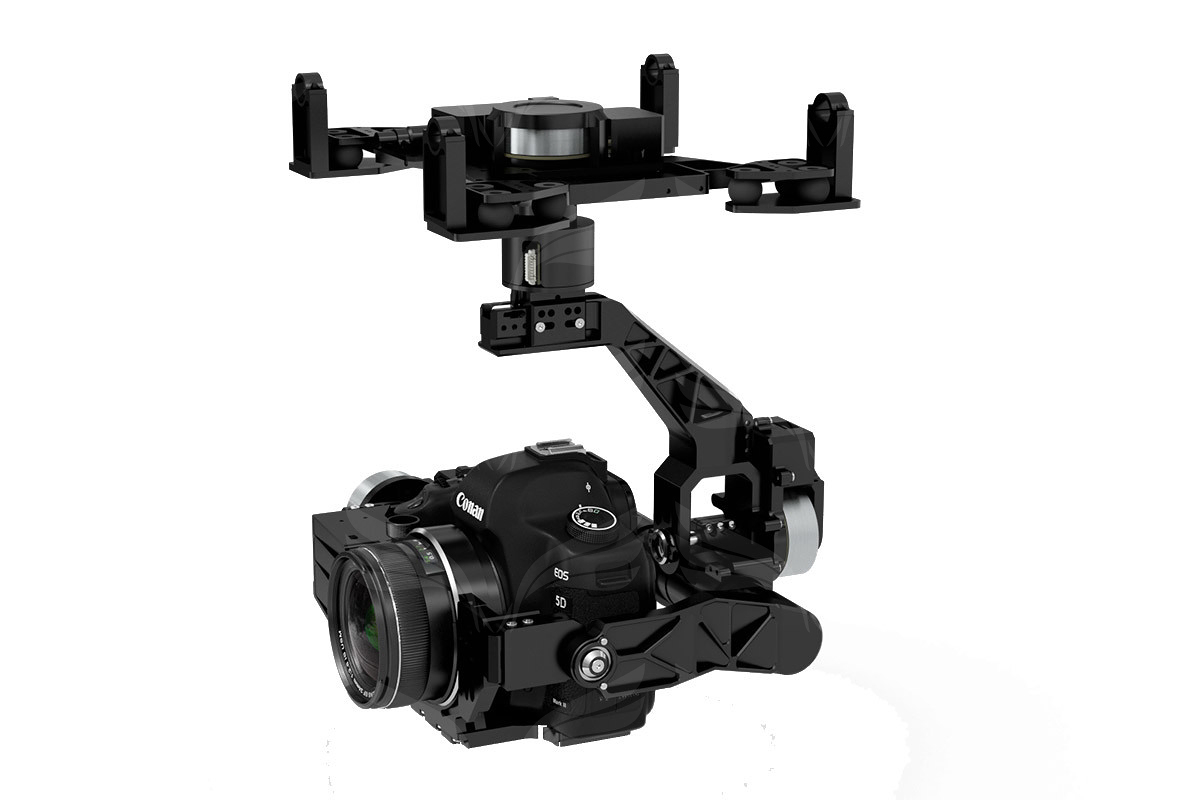

BUILT FOR THE CANON 5D MARK III
The Z15-5D III (HD) gimbal is built specifically to hold the Canon 5D Mark III camera, giving you stable footage and precise control within ±0.02°. When used with a professional DJI flight system, it keeps your Mark III secure, steady and under control in even the most difficult of flight conditions.
NEW HDMI-AV/HD MODULE
Get real-time HD video while controlling the camera with a built-in video output module that is perfectly compatible with the DJI Lightbridge HD digital video downlink. First-person-view flying is available in both HD and AV, and the AV output works with any 5.8G analog video downlink.

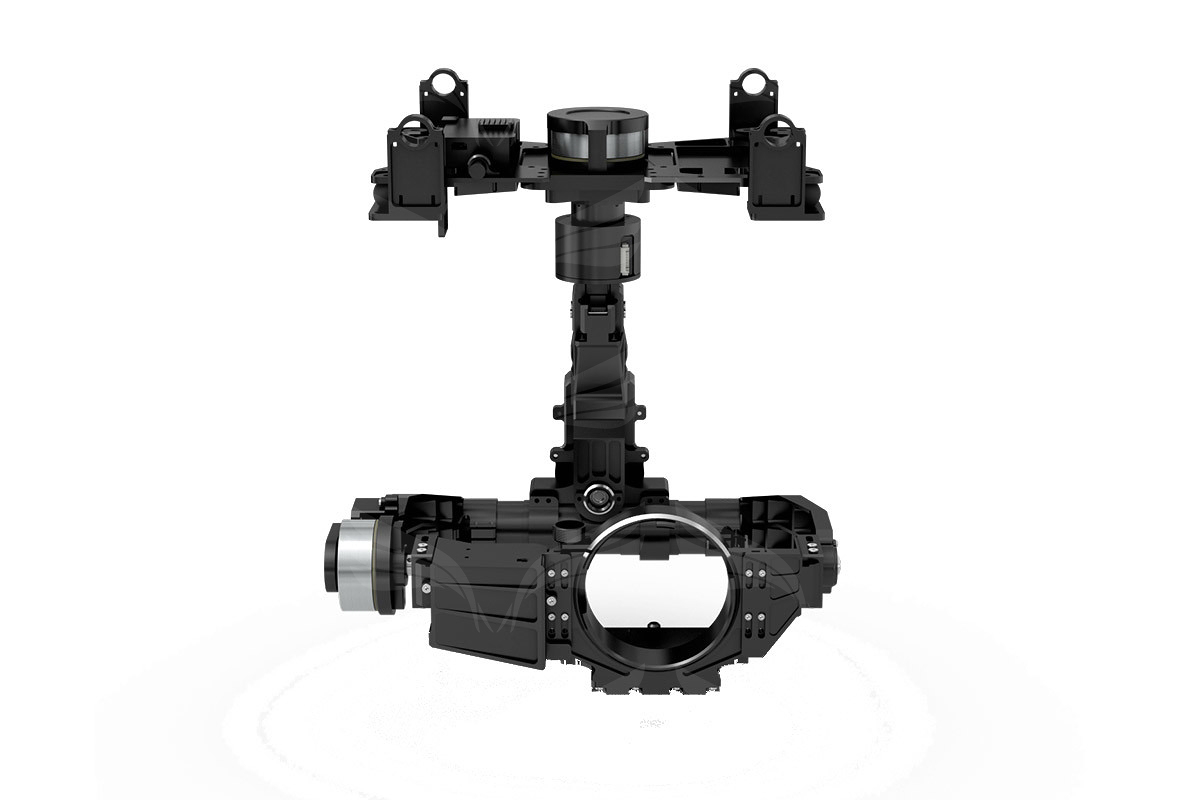

3-AXIS ROTATION CONTROL
The 3-axis Zenmuse system’s creative mechanical design makes control both intuitive and easy. A tail potentiometer greatly increases stability and precision, while internal slip rings replace complicated wiring. All power and signal lines have been integrated into gimbal itself, resulting in a completely free control axis that offers a maximum yaw of ±360°, pitch of -120° to +15°, and a roll of ±25°.
A COMPLETE SOLUTION
The Zenmuse Z15-5D III (HD) is ideal for the DJI S1000 flight platform and the A2 or WooKong-M flight controllers. Attach the DJI Lightbridge HD digital video downlink, or an iOSD Mark II and a 5.8G analog video link, for a complete solution to your aerial photography and cinematography needs.
MULTIPLE CONTROL MODES
Three control modes expand your creative boundaries and ensure ease of flight. Orientation-locked, Non Orientation-locked, and Back to Mid-point modes can be switched to on the fly, easily adjusting to the needs of each shoot.
GIMBAL SERVO DRIVE MODULE
Every Zenmuse gimbal gets its precision from DJI’s custom designed Gimbal Servo Drive Module. Each module is tailored to the weight and balance of the specific camera the gimbal has been designed to hold. This significantly improves control and stability while maximizing torque and minimizing vibrations.
BUILT-IN INDEPENDENT IMU MODULE AND INFRARED MODULE
A new stabilizing algorithm has been utilized, which together with the extremely precise machinery gives you effortless control. Because the IMU is built in, your gimbal requires no extra equipment or wiring, reducing weight and allowing you to start shooting faster. The shutter can be controlled remotely by an infrared receiver.
- Three Working Modes
· Orientation-locked control
· Non orientation-locked control
· FPV mode (Reset)
- Built-in independent IMU module
- DJI gimbal special servos drive module
- HDMI HD/AV module
- Wireless video transmission supported
- Camera shutter control supported
- Wide range voltage input supported
- S-Bus/PPM Receiver support
- 360° panoramic photograph function
- Auto-calibration function
CANON EOS 5D MARK III
Supported Lens Currently
CANON EF 24mm f/2.8 IS USM
GCU Input Power
4S~12S LiPo (Recommend 6S if with S1000)
At least four spare receiver channels
Assistant Software System Requirement
Windows XP SP3; Windows 7; Windows 8 (32 or 64 bit)
Mechanical& Electrical Characteristics
Static current: 200mA (@25V)
Dynamic current: 400mA (@25V)
Locked-rotor current: 4A (@25V)
-10°C ~ 50°C
64.2 mm × 34.1mm × 19.5mm
Load Weight (Reference Value)
2664g(5D MARK III with SD Card & Battery & CANON EF 24mm f/2.8 IS USM Lens)
Controlled Angle Accuracy
Maximum Controlled Rotation Speed
Pan axis: ±90°/s
Tilt axis: ±130°/s
Roll axis: ±30°/s
Pan axis control: ±360° continuous rotation
Tilt axis control: +15°/-90°
Roll axis control: ±25°
