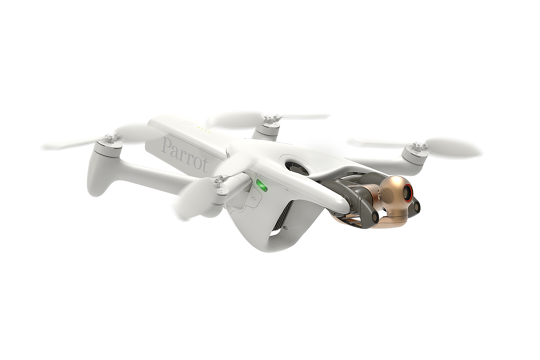

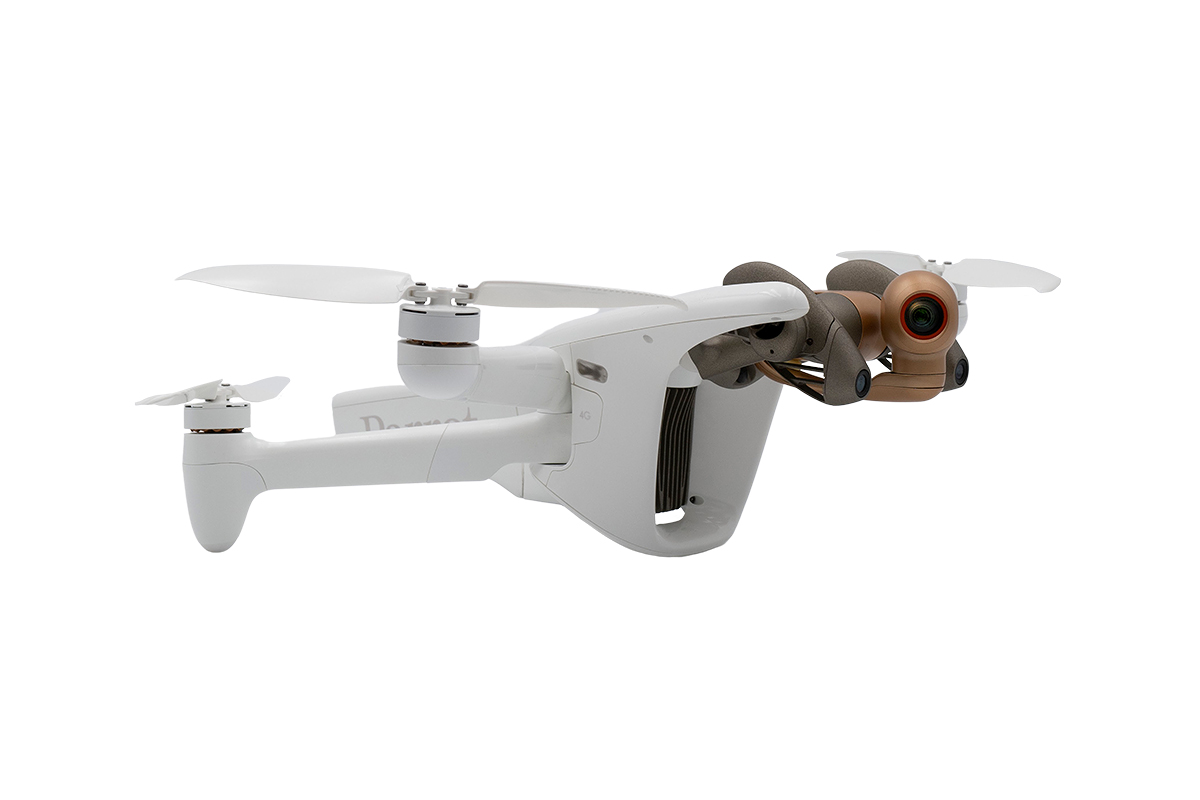

Parrot ANAFI Ai 4G dronas / drone

Prekės aprašymas

Suderinamos trečiųjų šalių programinės įrangos:

PIX4Dscan, PIX4Dinspect, PIX4Dcloud, PIX4Dreact, PIX

Sritys, kuriuose naudojama:

Apžiūra: pastatai, infrastruktūra, telekomunikacijų bokštai, vėjo jėgainės, saulės baterijos, vamzdynai, naftos perdirbimo gamyklos.

Fotogrametrija: žemėlapių sudarymas, geodezinis tyrimas, 3D modeliavimas, ortofotografija.

Statybų stebėjimas, automatizuotas stebėjimas, nekilnojamasis turtas, draudimas, vaizdo kūrimas.

Techninė informacija

DRONE:

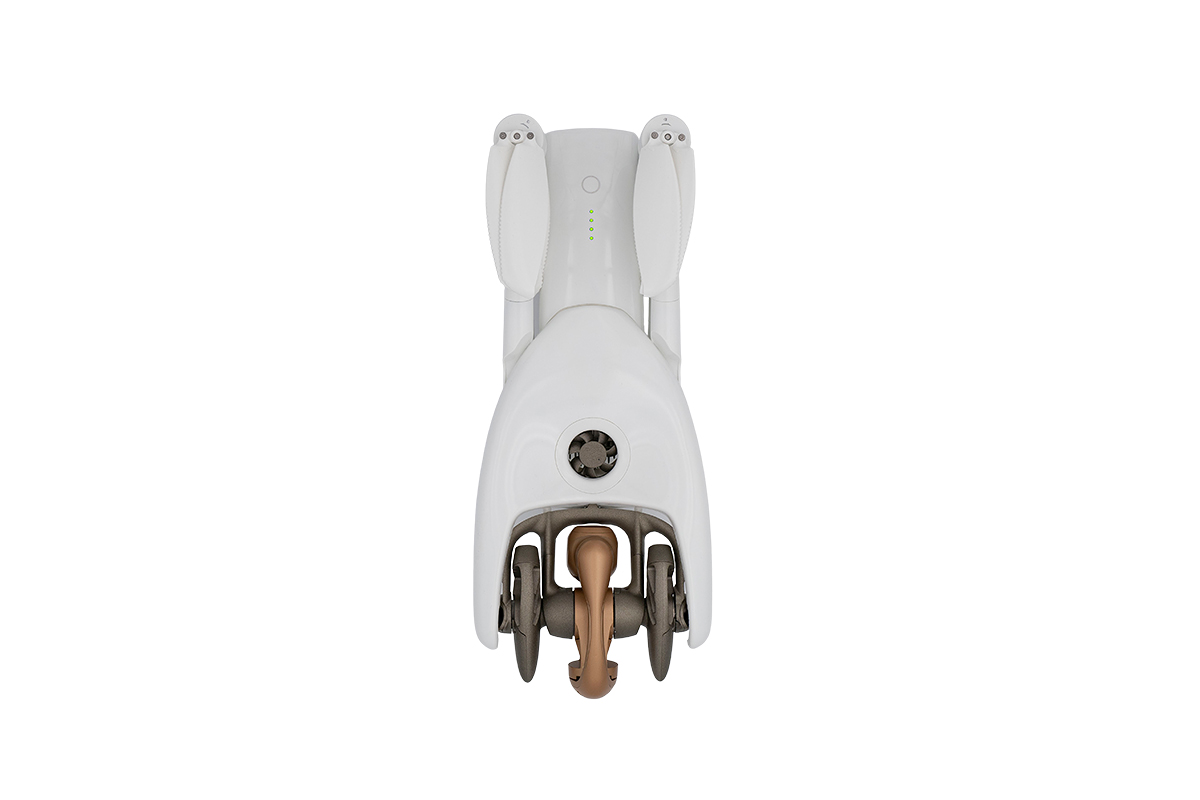

Size folded: 304 x 130 x 118 mm
Size unfolded: 320 x 440 x 118 mm
Weight: 898 g / 1.98 lb
Ready to fly in 60 seconds
Maximum flight time: 32 min
Maximum horizontal speed: 17m/s – 38mph
Maximum vertical speed: 4m/s – 9mph
Maximum wind resistance: 14m/s – 31.3mph
Maximum propeller speed: 10,000 rpm
Service Ceiling: 5,000 m (above sea level)
Operating temperatures: -10°C to 40°
Dust and rain resistant (IP53)
Noise emission: 81dB at 1 m
MicroSD and SIM card slots

CONNECTIVITY:

Seamless 4G/Wi-Fi switching
Flies Beyond Visual Line Of Sight
1080p 30 fps live streaming
No interference near telecom towers

NAVIGATION SYSTEM:

Satellite navigation: GPS, Glonass and Galileo
Vertical camera & Time of Flight
Barometer and magnetometer
2 x 6-axis inertial units (flight and camera)
   2 x 3-axis accelerometers
   2 x 3-axis gyroscopes Stereoscopic
cameras mounted on a 311° rotating gimbal (-107° to +204°) for obstacle avoidance
AI trajectory optimization system
Indoor flight

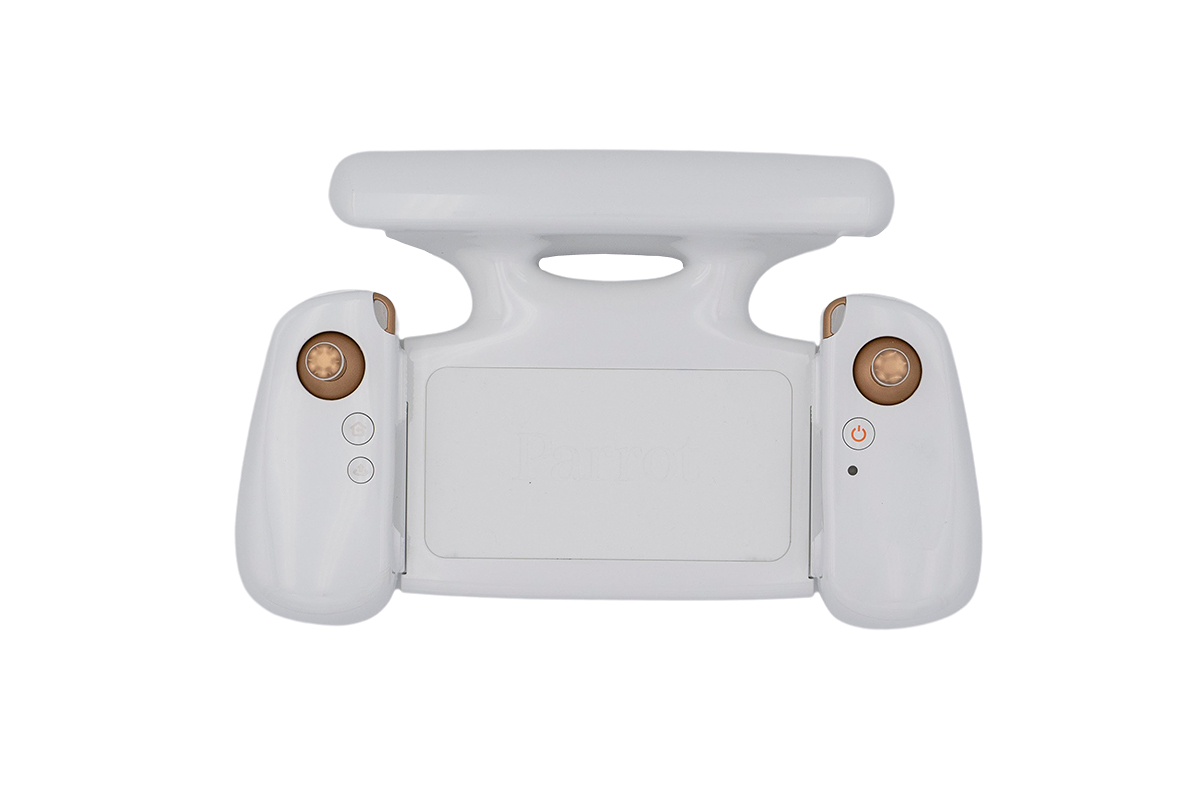

SKYCONTROLLER 4:

Size without terminal: 238 x 147 x 55 mm
Maximum size: 315 x 147 x 55 mm
Weight: 606 g / 1.34 lb
Transmission system: Wi-Fi 802.11a/b/g/n & 4G
Frequency of use: 2.4 GHz – 5 GHz
Direct video stream resolution: 1080 p
Battery capacity: 3.350 mAh 7.2 V
Compatible with all smartphones and tablets up to 8"
Charges smartphones and tablets
Ports: 2xUSB-C (charging and connecting), micro-HDMI
Dust resistant (IP5X)

DRONE SMART BATTERY:

Type: High Density Lithium Polymer (262 Wh/kg)
Capacity: 6800 mAh 4.4 V
Charging port: USB-C
Weight: 366 g / 0.81 lb
Maximum charging power: 45 W

PARROT FREEFLIGHT 7 APPLICATION:

Free App, no subscription fee
App available on the App Store
Compatible with iOS 12 and higher
3 free 3D models, courtesy of PIX4Dcloud

IMAGING SYSTEM:

Sensor: 1/2’’ 48MP CMOS
Dynamic range: 14 EV in HDR mode
Optical LD-ASPH
(low dispersion aspheric lens):
  Aperture: f/2.0
  35 mm focal equivalent: 24 mm
Depth of field: 4.5 m to ∞
ISO range: 50 to 6400
Shutter speed: 1/15 s to 1/10000 s
Zoom: 6x – lossless: up to 4x (1080p) & 2x (4K UHD)
6-axis stabilization:
Mechanical: 3-axis (pitch, roll,yaw)
Electronic (EIS): 3-axis (pitch, roll,yaw)
Gimbal tilt range: -90° to +90°

VIDEO SPECIFICATIONS:

Format: MP4 (H.264, H.265)
Resolutions:
4K UHD: 3840x2160
1080 p: 1920x1080
Framerates:
4K UHD: 24/25/30/48/50/60 fps
1080 p: 24/25/30/48/50/60/90/100/120 fps
HDR 10: 4K UHD/1080p - 24/25/30 fps
HDR 8: for all resolutions
Horizontal field of view (HFOV): 68°
Maximum video bandwidth: 200 Mbps
P-Log for professional video editing

PHOTO SPECIFICATIONS:

Formats: JPEG, DNG (Digital NeGative RAW)
Resolution: 48 MP (8000x6000), 12 MP (4000x3000)
Horizontalfield of view (HFOV): 73° (Wide), 69° (Wide with EIS), 65° (Rectili-near with EIS)
Modes: Single, Bracketing, Burst (10 fps), Panorama (4 formats), Time-lapse, GPS-lapse

AUTONOMOUS FLIGHT:

Photogrammetry: single grid, doublegrid, orbit, automatic
Flight Plan: multiple Waypoints and Points Of Interest
Cameraman: automatic framing with visual tracking
Smart RTH: customable return altitude
Vehicle: flight adapted to controller location reference

CYBERSECURITY:

Zero data shared without user consent
FIPS140-2 compliant and CC EAL5+ certified Secure Elements
Strong authentication for 4G
Digitally signed pictures
Transparency and Bug bounty continuous security check

PARROT SDK:

Air SDK: onboard coding capabilites
Ground SDK: iOS & Android App development kit
OpenFlight: open-source core of Free-Flight 7
Sphinx: 3D photorealistic simulator
Olympe: Python controller programming interface
PDrAW: video & metadata toolset

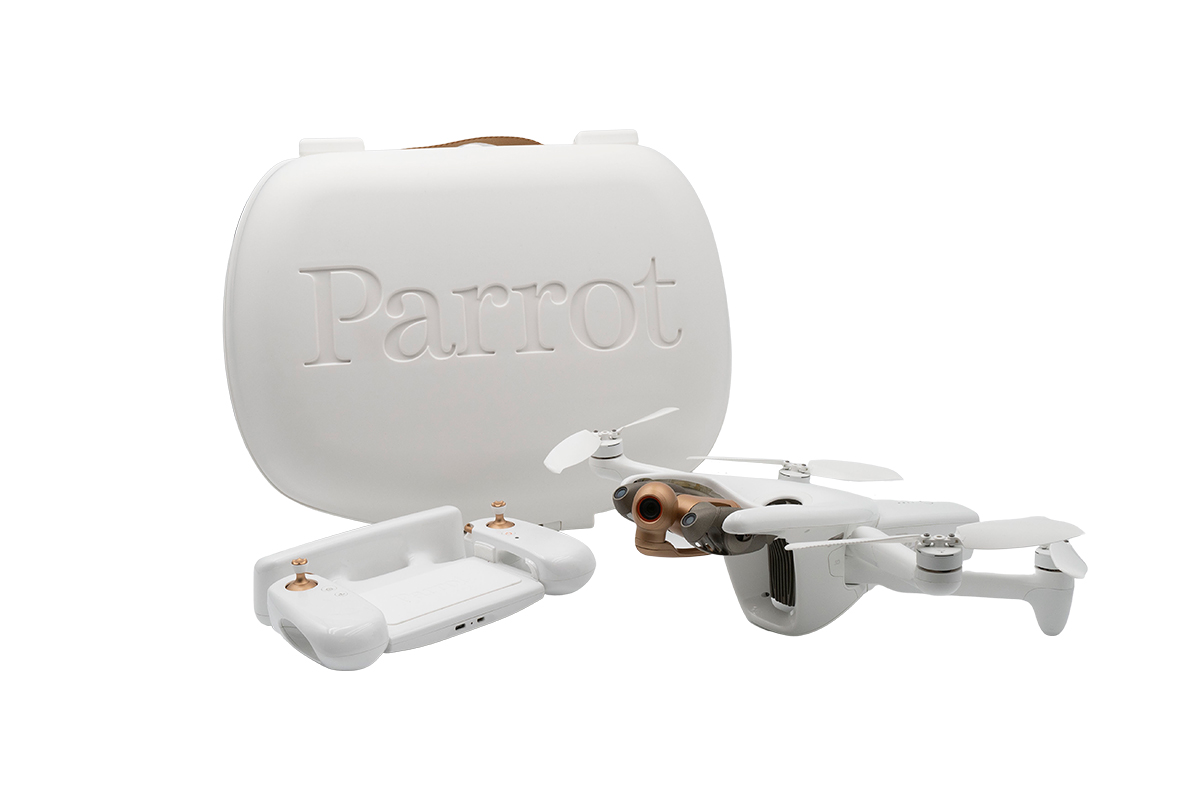

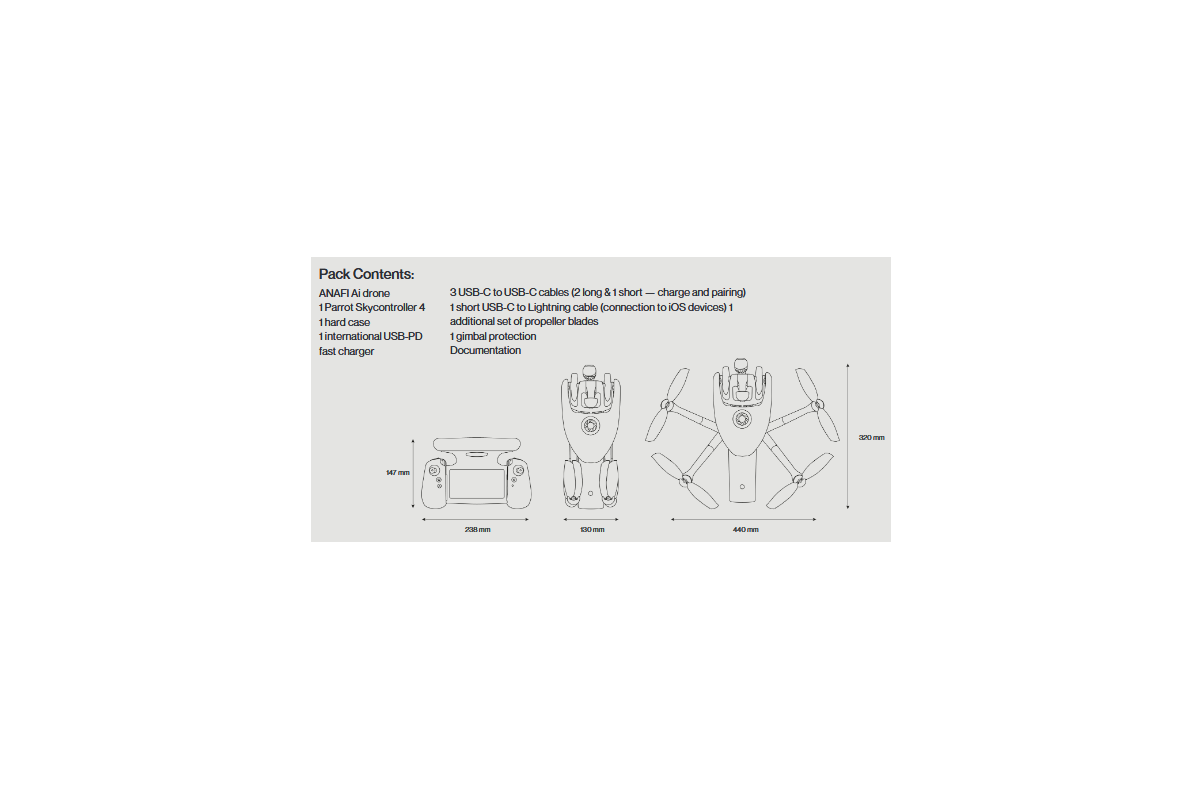

Dežutėje yra

1x ANAFI Ai dronas
1x Parrot Skycontroller 4 pultas
1x Kietas dėklas
1x Tarptautinis USB-PD
1x Greitas įkroviklis
3x USB-C to USB-C laidai (2 ilgi ir 1 trumpas - įkrovimui ir sujungimui)
1x Trumpas USB-C to Lightning laidas (sujungimui su iOS įrenginiais)
1x Papildomas komplektas propelerių
1x Stabilizatoriaus apsauga
