FEATURES

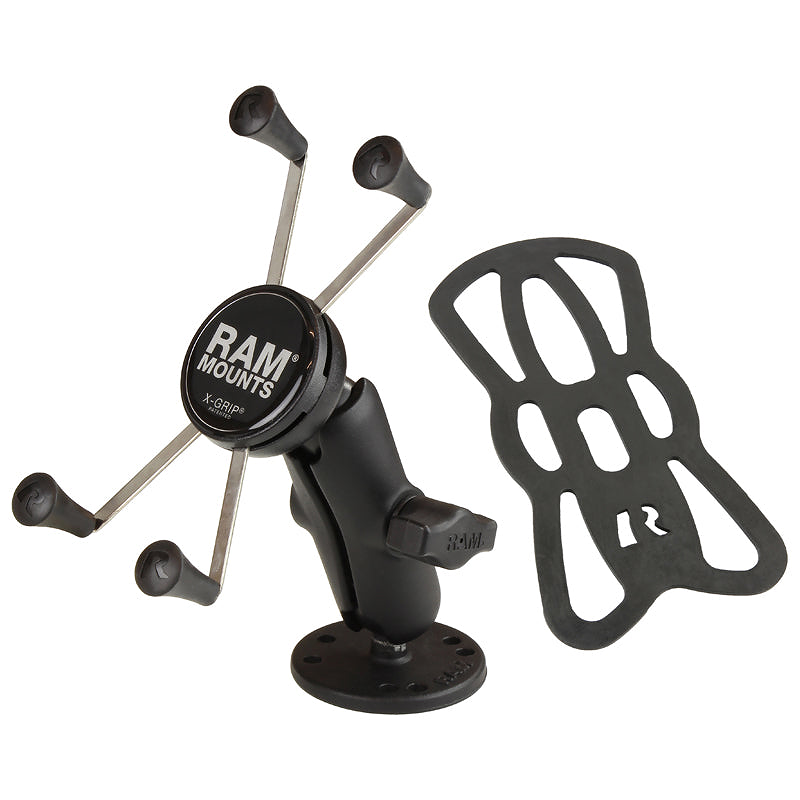

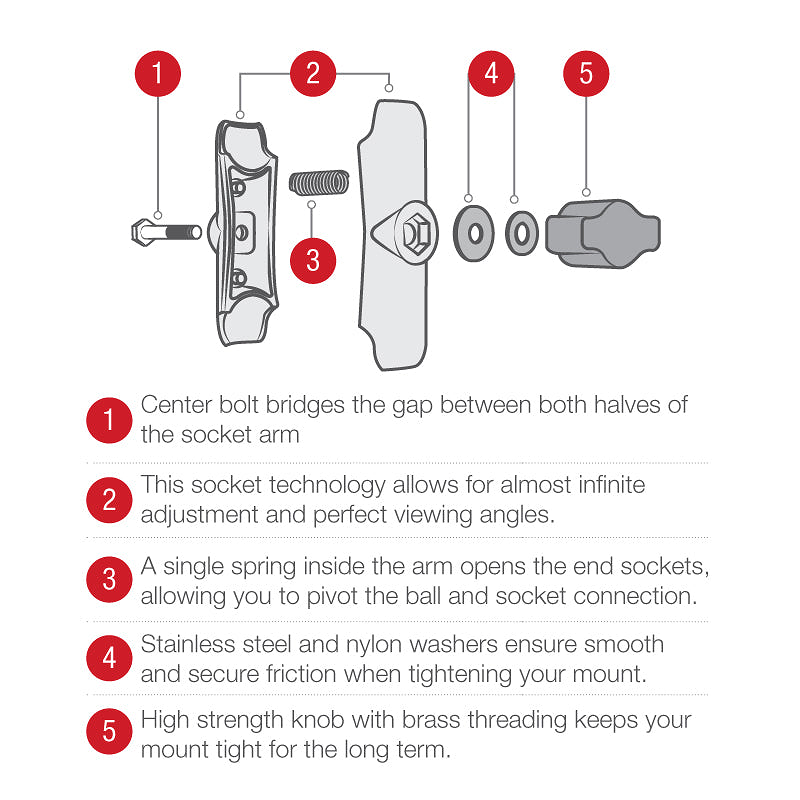

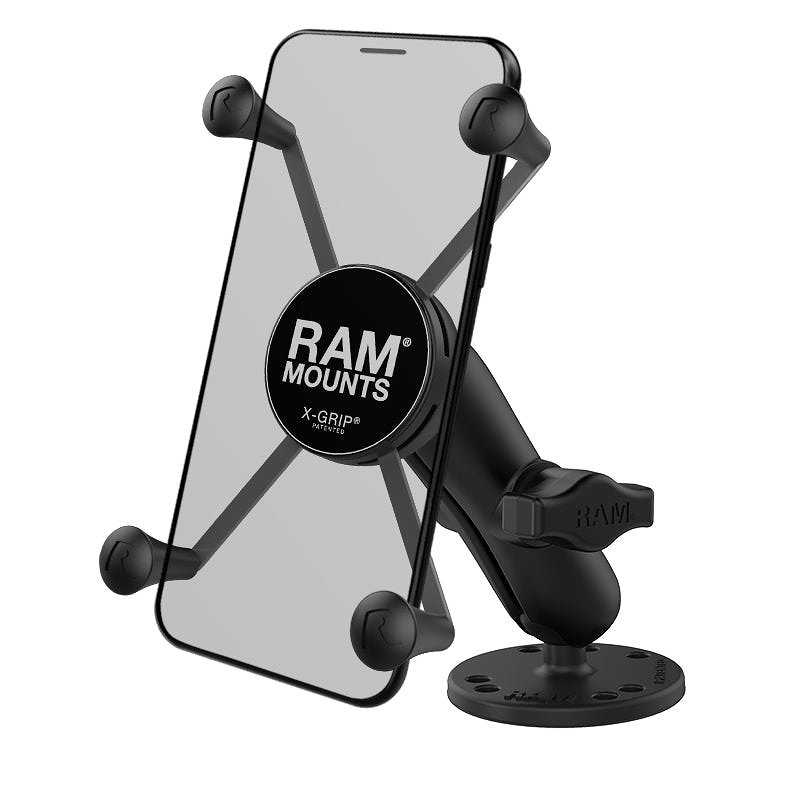

Overview | The RAP-B-138-UN10U consists of a 2.5" diameter round base with the universal AMPS hole pattern, double socket arm and universal spring loaded X-Grip® cradle for cell phones. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the both ends of the socket arm; this with a twist of the arm knob, allows you can move the mount to your optimum viewing position. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip® is the cell phone cradle evolved. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size. |
---|---|
Hardware included | (1) Optional Tether(1) Glue Tube for Rubber Caps |

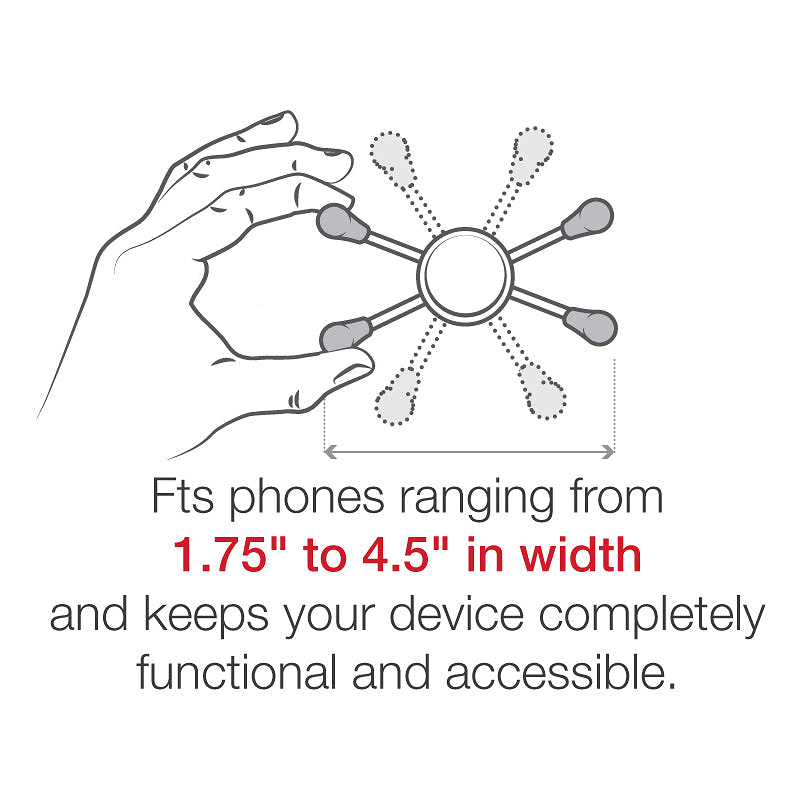

Holder dimensions | Width Range: 1.75" - 4.5"Depth Range: .875" max |
Socket to socket length | 3" |
Hole pattern | 4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter |
Plate size | 2.5" Diameter |
Ball size | B Size (1") |
Weight capacity | Standard Use: 2 lbsHeavy-Duty Use: 1 lb |
Materials | Marine-grade aluminumHigh strength compositeStainless steel |
Packaging type | Retail Bag |
Weight | 0.7 lb |
Additional Information | Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more. |
Instructions | RAM® X-Grip® Assembly Guide |
