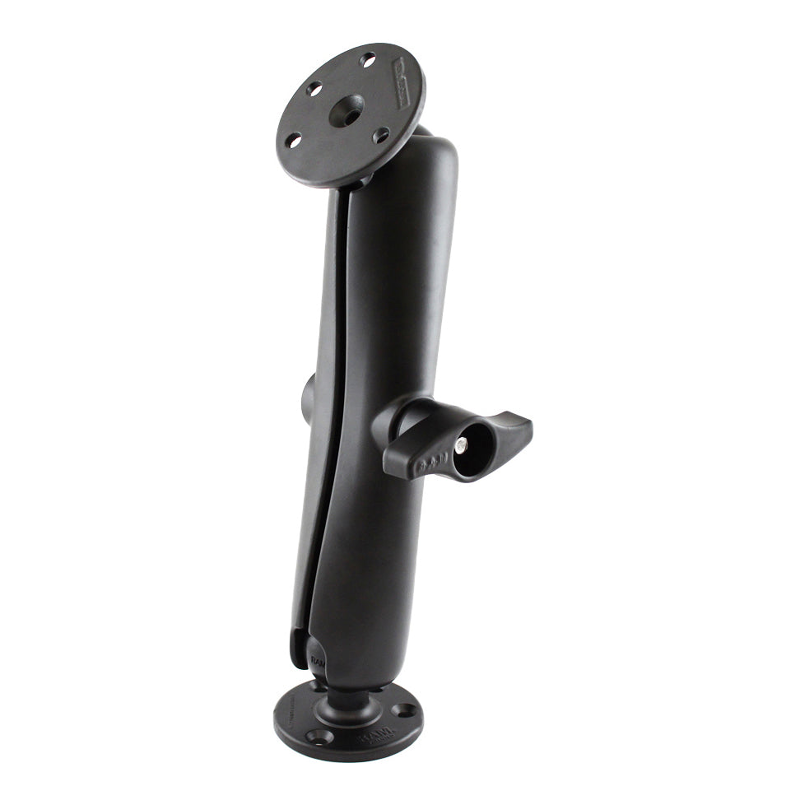

Overview | The RAM-D-101U consists of (2 qty) 3.68" diameter round bases and LONG length double socket arm. The 3.68" diameter round bases have pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. Designed into the mount is a 2.25" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. |
---|---|
Product dimensions | Overall Height: 15.5" |
Socket to socket length | 11.41" |
Hole pattern | See Drawing |
Ball size | D Size (2.25") |
Weight capacity | Standard Use: 6 lbsHeavy-Duty Use: 5 lbs |
Materials | Marine-grade aluminum |
Packaging type | Poly Bag |
Weight | 5.2 lb |
