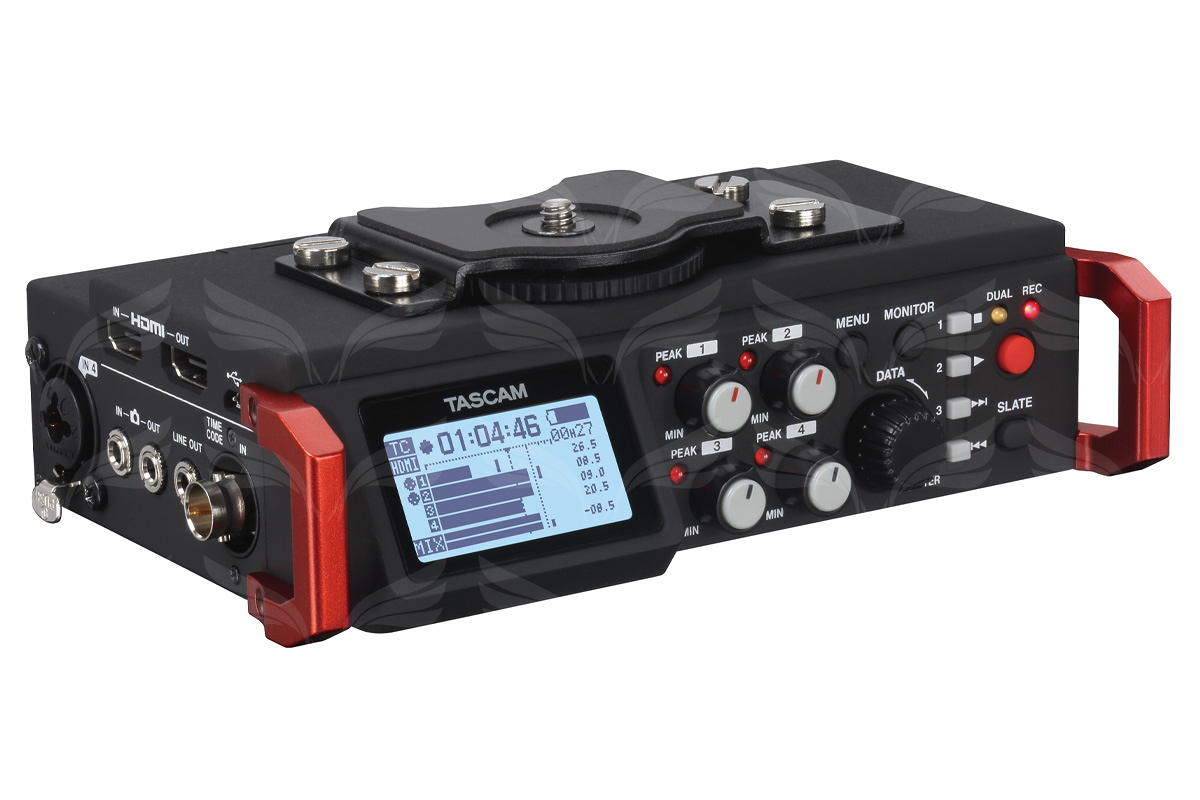

Tascam DR-701D 6 takelių rekorderis / 6-track Recorder for Video Production

Tascam DR-701D - tai flagmanas, kuris yra skirtas „single-shooter“ vaizdo įrašų gamybai.

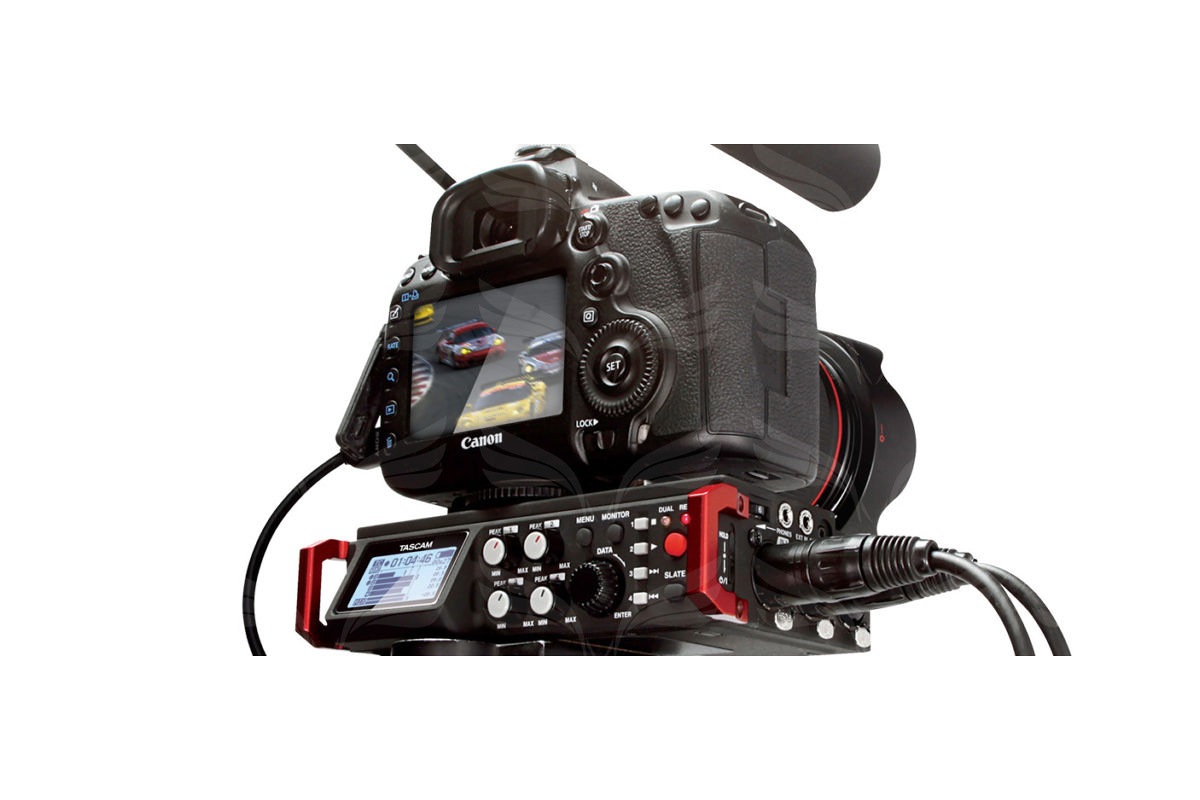

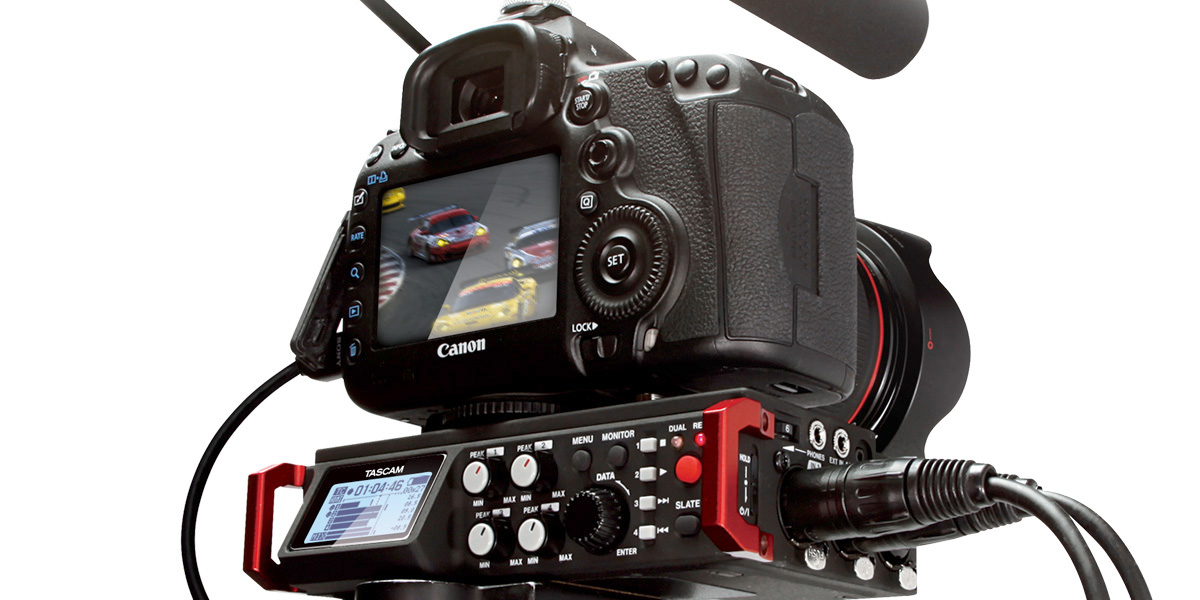

HDMI įvestis ir išvestis leidžia DSLR kamerai pradėti įrašinėti abiejuose įrenginiuose, o „video clock“ apsaugo nuo garso ir vaizdo slinkimo. Net keturias mikrofono įvestis galima įrašyti atskirai ir maišyti su stereofoniniu takeliu, iš viso įrašant šešis takelius. Lengvas, tačiau tvirtas rekorderis yra pagamintas iš magnio lydinio. Trikojo laikikliai, esantys įrenginio viršuje ir apačioje, leidžia įrenginį montuoti po fotoaparatu, pritvirtinti prie tolesnio fokusavimo keltuvo arba naudoti atskirai.  Sukurtas profesionaliems filmų kūrėjams, televizijos prodiuseriams, reklamų ir dokumentinių filmų kūrėjams. DR-701D - tai aukštos kokybės, kompaktiškas rekorderis, kurį galima naudoti su bet kuria kamera.

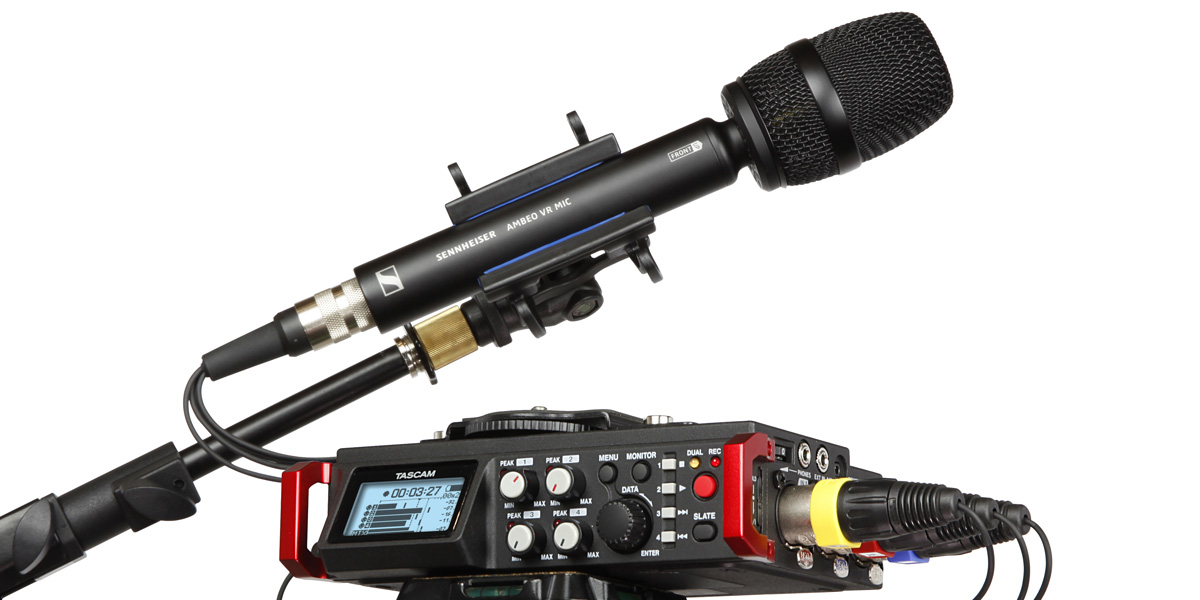

Tascam DR-701D 6 takelių rekorderis yra nešiojama vaizdo įrašų kūrimo garso sistema, palaikanti virtualiosios realybės (VR) turinio kūrimą su 2.00 versijos programinės įrangos atnaujinimu. Šis naujas atnaujinimas palaiko „Ambisonics“ įrašymą įgalindamas A ir B formatų kodavimą ir teikdamas realaus laiko stereofoninio monitoriaus B formato turinio derinį. Kartu su tvirtu ir kompaktišku korpusu, DR-701D yra idealus įrašymo sprendimas VR gamybai.

Recording media	SD card(64MB to 2GB), SDHC card(4GB to 32GB), SDXC card(48GB to 128GB)
Recording format
WAV	44.1k/48k/96k/192k Hz, 16/24-bit
BWF	44.1k/48k/96k/192k Hz, 16/24-bit
Number of input channels
44.1k/48k/96k Hz	4 maximum
192kHz	2 maximum
Number of recording tracks
44.1k/48k/96k Hz	6 maximum
192kHz	2 maximum
Analog audio inputs	*The maximum input level the level that the input knob can be adjusted and a digital full-scale(0dBFS) signal can be input without distorting. *The minimum input level is the level that the input knob can be adjusted and a -20dBFS signal can be input.

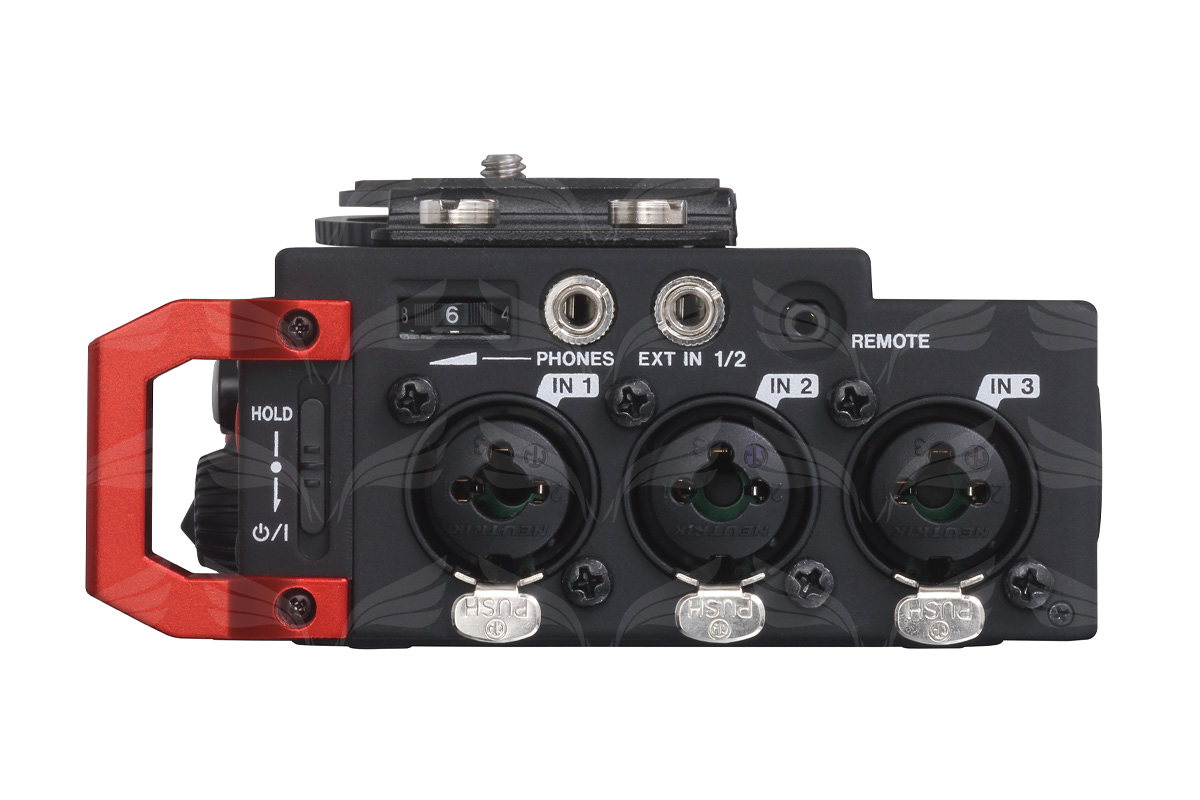

IN 1, IN 2, IN 3, IN 4	XLR can provide phantom power
Connectors	XLR-3-31 (1:GND, 2:HOT, 3:COLD) 6.3mm(1/4")standard TRS jacks(tip:HOT, Ring:COLD, Sleeve:GND)
Input gain	”LOW”/”MID”/”HI”/”HI+”
Input impedance	2k ohms
Phantom power	48V +/-4V(10mA/CH), 24V +/-4V(10mA/CH)
Maximum input level	+4dBu
Minimum input level	-72dBu
MIC input gain	TRIM MAX
LOW	+20dB
MID	+40dB
HI	+52dB
HI+	+64dB
Input gain	"LINE"
Input impedance	10k ohms or later
Nominal input level	+4dBu
Maximum input level	+24dBu
EXT IN 1/2
Connector	3.5mm(1/8")stereo mini jack (can provide plug-in power)
Input impedance	10k ohms
Maximum input level	+10dBV
Minimum input level	-50dBV
MIC input gain	TRIM MAX
LOW	+3dB
MID	+11dB
HI	+26dB
HI+	+38dB
IN
Connector	3.5mm(1/8")stereo mini jack
Input impedance	10k ohms
Nominal input level	-10dBV
Maximum input level	+6dBV
Analog audio outputs
LINE OUT
Connector	3.5mm(1/8")stereo mini jack
Output impedance	200 ohms
Nominal output level	-14dBV
Maximum output level	+6dBV
OUT
Connector	3.5mm(1/8")stereo mini jack
Output impedance	200 ohms
Nominal output level	-44dBV
Maximum output level	+6dBV
PHONES
Connector	3.5mm(1/8")stereo mini jack
Maximum output	50mW + 50mW
Control inputs/outputs

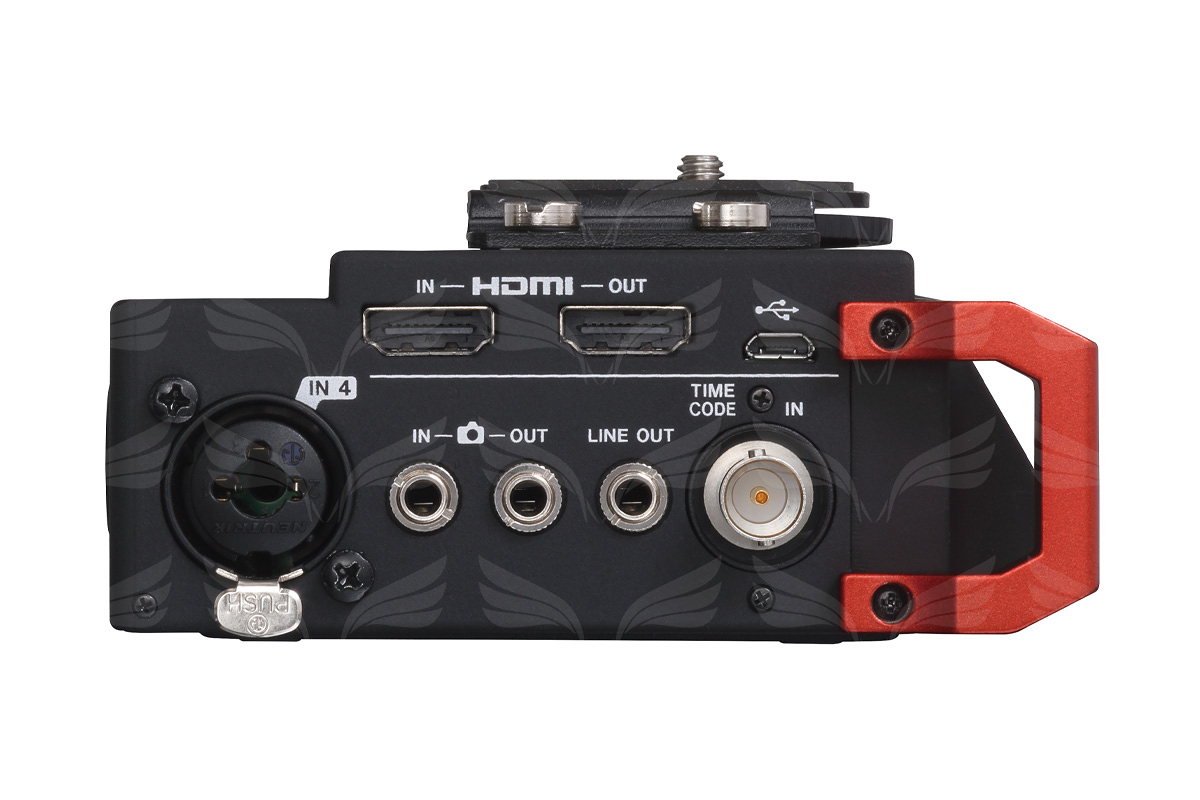

HDMI IN/OUT
Connectors	Type A receptacle
USB
Connector	Micro-B
Format	USB2.0 HIGH SPEED mass storage class
TIMECODE IN
Connector	BNCConnector
Signal voltage amplitude	0.5Vp-p to 5Vp-p
Input impedance	10k ohms
Format	SMPTE 12M-1999 compliant
REMOTE
Connector	2.5mm TRS jack
Power	4 AA batteries(Alkaline, NI-MH or lithium),  AC adapter(TASCAM PS-P520E, sold separately),  External battery pack(TASCAM BP-6AA, sold separately)
Power consumption	6.5W(maximum)
Current consumption (USB bus power)	1.3A(maximum)
Battery operation time (continuous operation)	2ch WAV, 48kHz, 16bit rec *When using phantom power, the operation time might be reduced depending on the mic being used.
DR-701D
Lithium (Energizer ULTIMATE LITHIUM)	About 7:30 : Built-in mic used for 3/4ch, Phantom power unused,HDMI not connected About 6:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected About 3:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
NI-MH batteries (eneloop)	About 4:00 : Built-in mic used for 3/4ch, Phantom power unused,HDMI not connected About 2:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected About 2:00 : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
Alkaline batteries (EVOLTA)	About 3:45 : Built-in mic used for 3/4ch, Phantom power unused,HDMI not connected About 2:00 : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected About 1:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
DR-701D + BP-6AA	*BP-6AA is using the alkaline batteries (EVOLTA).
Lithium batteries (Energizer ULTIMATE LITHIUM)	About 12:30 : Built-in mic used for 3/4ch, Phantom power unused,HDMI not connected About 7:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected About 5:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
NI-MH batteries (eneloop)	About 9:30 : Built-in mic used for 3/4ch, Phantom power unused,HDMI not connected About 7:00 : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected About 4:00 : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
Alkaline batteries (EVOLTA)	About 9:00 : Built-in mic used for 3/4ch, Phantom power unused,HDMI not connected About 6:30 : 1/2ch used, 3mA phantom power used for 2ch, HDMI not connected About 3:45 : 1/2ch used, 3mA phantom power used for 2ch, HDMI input connected(1080/60i)
Dimensions	169(W)×57.3(H)×113.5(D)mm (with the top adapter attached)
Weight	654g (including batteries) / 567g (without batteries)
Operating temperature	0˚C to 40˚C
Standard accessories	USB cable, Camera attachment bracket screw hole covers × 6 Owner's Manual (including warranty)

 Audio performance
