General

• Dimensions

• 39×39×22.3 mm

• Waterproof

• 10 m without Waterproof Case, 60 m with Waterproof Case

• Number of Microphones

• 1

• Weight

• 56 g

• Touchscreen

• 1.76 inches 350 ppi
  500±50 cd/m² 446×424

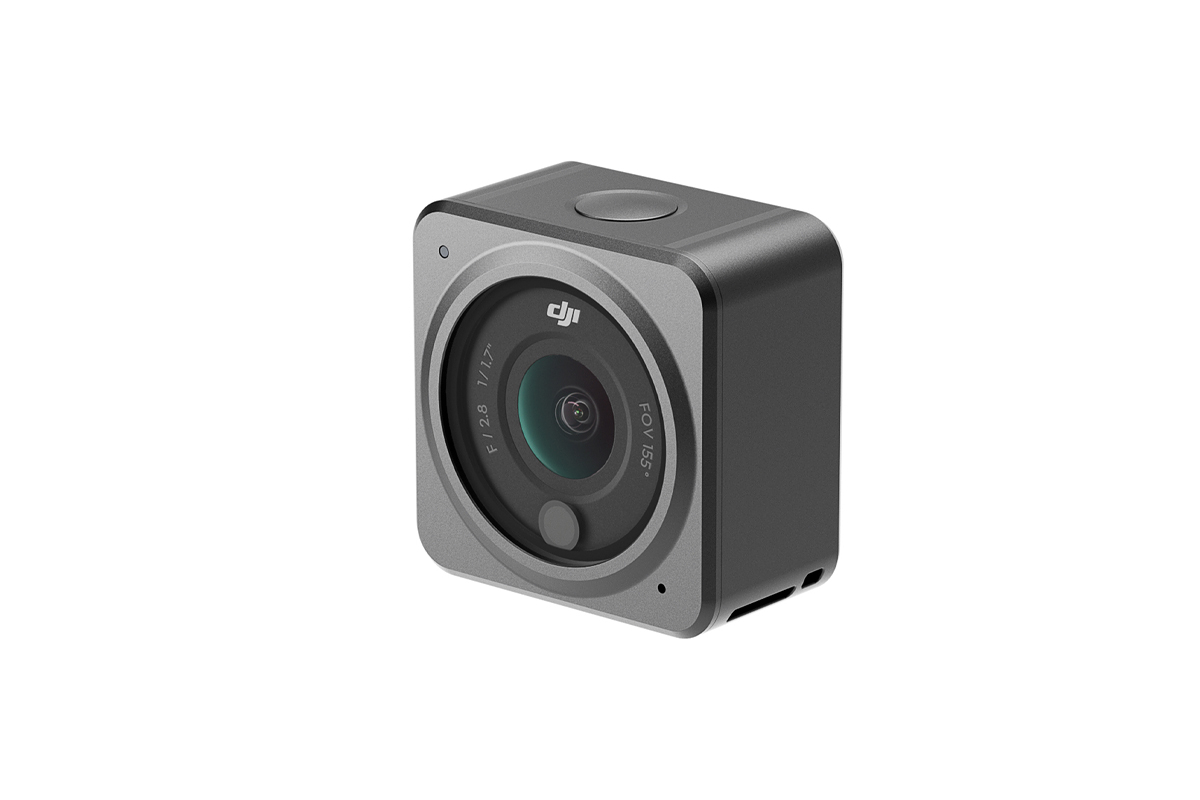

Camera

• Sensor

• 1/1.7” CMOS

• Lens

• FOV: 155° f/2.8

• ISO Range

• Photo: 100-6400
  Video: 100-6400

• Electronic Shutter Speed

• Photo: 1/8000-30 s
  Video: 1/8000 s to the limit of frames per second

• Max Photo Resolution

• 4000×3000

• Zoom

• Digital Zoom
  Photo: 4x
  Video: 2x (> 60fps), 3x (≤ 60fps, HorizonSteady On), 4x (≤ 60fps, HorizonSteady Off)
  Slow Motion/Timelapse: Not available

• Still Photography Modes

• Single: 12 MP
  Countdown: Off/0.5/1/2/3/5/10 seconds

• Video

• 4K (4:3): 4096×3072 @ 24/25/30/48/50/60fps
  4K (16:9): 3840×2160 @ 100/120fps
  4K (16:9): 3840×2160 @ 24/25/30/48/50/60fps
  2.7K (4:3): 2688×2016 @ 24/25/30/48/50/60fps
  2.7K (16:9): 2688×1512 @ 100/120fps
  2.7K (16:9): 2688×1512 @ 24/25/30/48/50/60fps
  1080p (16:9): 1920×1080 @ 100/120/200/240fps
  1080p (16:9): 1920×1080 @ 24/25/30/48/50/60fps

• Slow Motion

• 4K: 4x (120fps)
  2.7K: 4x (120fps)
  1080p: 8x (240fps), 4x (120fps)

• Timelapse

• 4K/2.7K/1080p
  Intervals: 0.5/1/2/3/4/5/6/7/8/10/13/15/20/25/30/40 seconds
  Duration: 5/10/20/30 minutes, 1/2/3/5 hours, ∞

• Stabilization

• EIS: RockSteady 2.0+HorizonSteady
  * EIS is not supported when recording at 100fps or above. HorizonSteady is only available when the video resolution is 1080p (16:9) or 2.7K (16:9)

• Max Video Bitrate

• 130 Mbps

• Supported File Formats

• exFAT

• Photo Format

• JPEG / RAW

• Video Formats

• MP4 (H.264 / HEVC)

• Supported SD Cards

• microSD (Max. 256GB)

• Recommended microSD Cards

• DJI Action 2 supports up to 256GB SDHC/SDXC UHS-I Speed Grade 1 or Speed Grade 3 microSD cards
  Recommended models:
  Samsung EVO 32GB UHS-I Speed Grade 1 microSDHC
  Samsung EVO Plus 32GB UHS-I Speed Grade 1 microSDXC
  SanDisk Extreme 64GB V30 A2 UHS-I Speed Grade 3 microSDXC
  SanDisk High Endurance 32GB UHS-I Speed Grade 3 microSDXC
  SanDisk Extreme Pro 32GB UHS-I Speed Grade 3 microSDXC
  SanDisk Extreme 16GB UHS-I Speed Grade 3 microSDXC
  Lexar 633x 16GB UHS-I Speed Grade 1 microSDHC

• Audio Output

• 48 KHz; AAC

Battery

• Type

• LiPo 1S

• Capacity

• 580 mAh

• Energy

• 2.23 Wh

• Voltage

• 3.85 V

• Operating Temperature

• 0° to 40° C (32° to 104° F)

• Charging Temperature

• 5° to 60° C (41° to 140° F)

• Operating Time

• 70 minutes
  * Tested in a laboratory environment while recording 1080p/30fps (Power Reserve) video with electronic image stabilization disabled. This figure should be used for reference only

Connection

• Wi-Fi Operation Frequency Range

• 2.400-2.4835 GHz
  5.150-5.250 GHz
  5.725-5.850 GHz

• Wi-Fi Protocol

• 802.11 a/b/g/n/ac

• Wi-Fi Transmit Power (EIRP)

• 2.4 GHz: <16 dBm (FCC/CE/SRRC/MIC)
  5.1 GHz: <14 dBm (FCC/CE/SRRC/MIC)
  5.8 GHz: <14 dBm (FCC/CE/SRRC)

• Bluetooth Operation Frequency Range

• 2.400-2.4835 GHz

• Bluetooth Transmit Power (EIRP)

• <4 dBm

• Bluetooth Protocol

• BLE 5.0

General

• Dimensions

• 39×41.6×24.6 mm

• Waterproof

• Not waterproof without Waterproof Case, 60 m with Waterproof Case

• Number of Microphones

• 3

• Weight

• 64 g

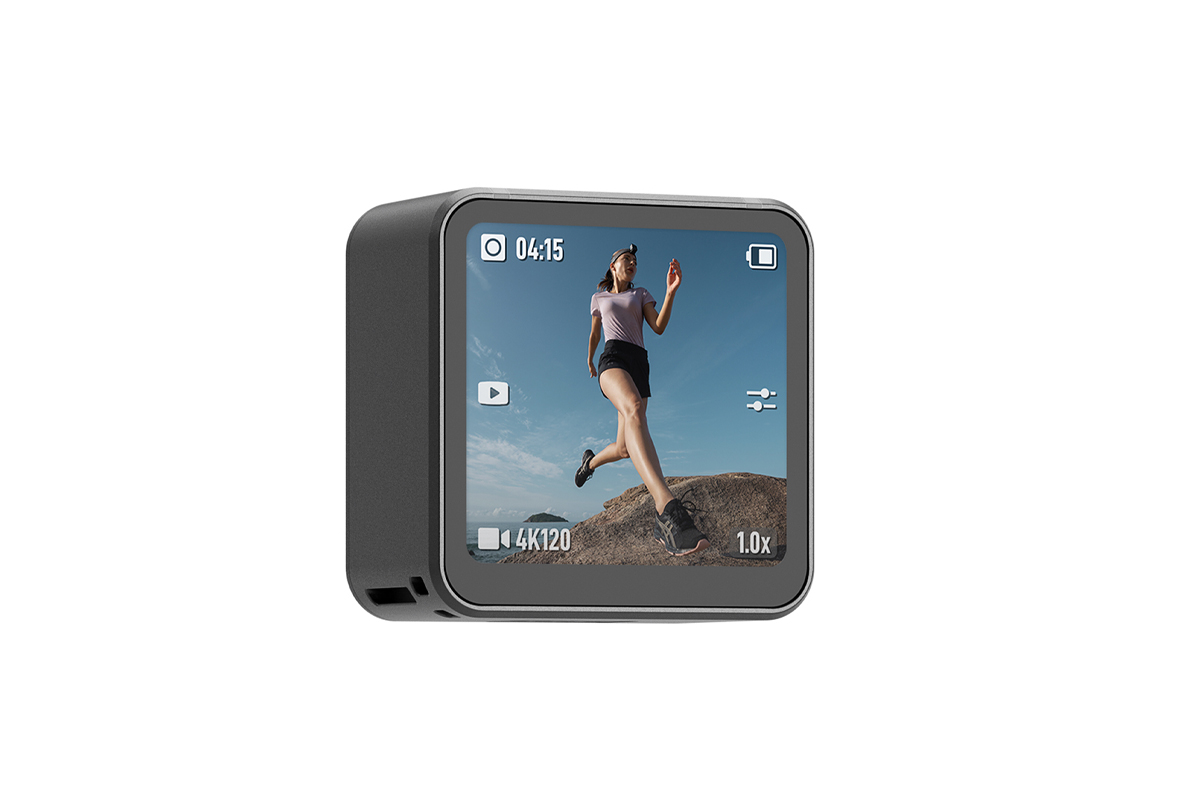

• Touchscreen

• 1.76 inches 350 ppi
  500±50 cd/m² 446×424

Battery

• Battery Type

• LiPo 2S

• Capacity

• 1300 mAh

• Energy

• 5 Wh

• Voltage

• 7.7 V

• Operating Temperature

• 0° to 40° C (32° to 104° F)

• Charging Temperature

• 5° to 60° C (41° to 140° F)

• Operating Time

• Camera Unit + Front Touchscreen Module: 160 minutes
  * Tested in a laboratory environment while recording 1080p/30fps (Power Reserve) video with electronic image stabilization disabled. This figure should be used for reference only

• Charging Time

• Camera Unit + Front Touchscreen Module: 90 minutes
  * Tested in a laboratory environment when using a 5V/2A USB adapter

General

• Dimensions

• 39×41.6×21.4 mm

• Waterproof

• Not waterproof without Waterproof Case, 60 m with Waterproof Case

• Weight

• 56.6 g

Battery

• Battery Type

• LiPo 2S

• Capacity

• 1300 mAh

• Energy

• 5 Wh

• Voltage

• 7.7 V

• Operating Temperature

• 0° to 40° C (32° to 104° F)

• Charging Temperature

• 5° to 60° C (41° to 140° F)

• Operating Time

• Camera Unit + Power Module: 180 minutes
  * Tested in a laboratory environment while recording 1080p/30fps (Power Reserve) video with electronic image stabilization disabled. This figure should be used for reference only

• Charging Time

• Camera Unit + Power Module: 90 minutes
  * Tested in a laboratory environment when using a 5V/2A USB adapter
