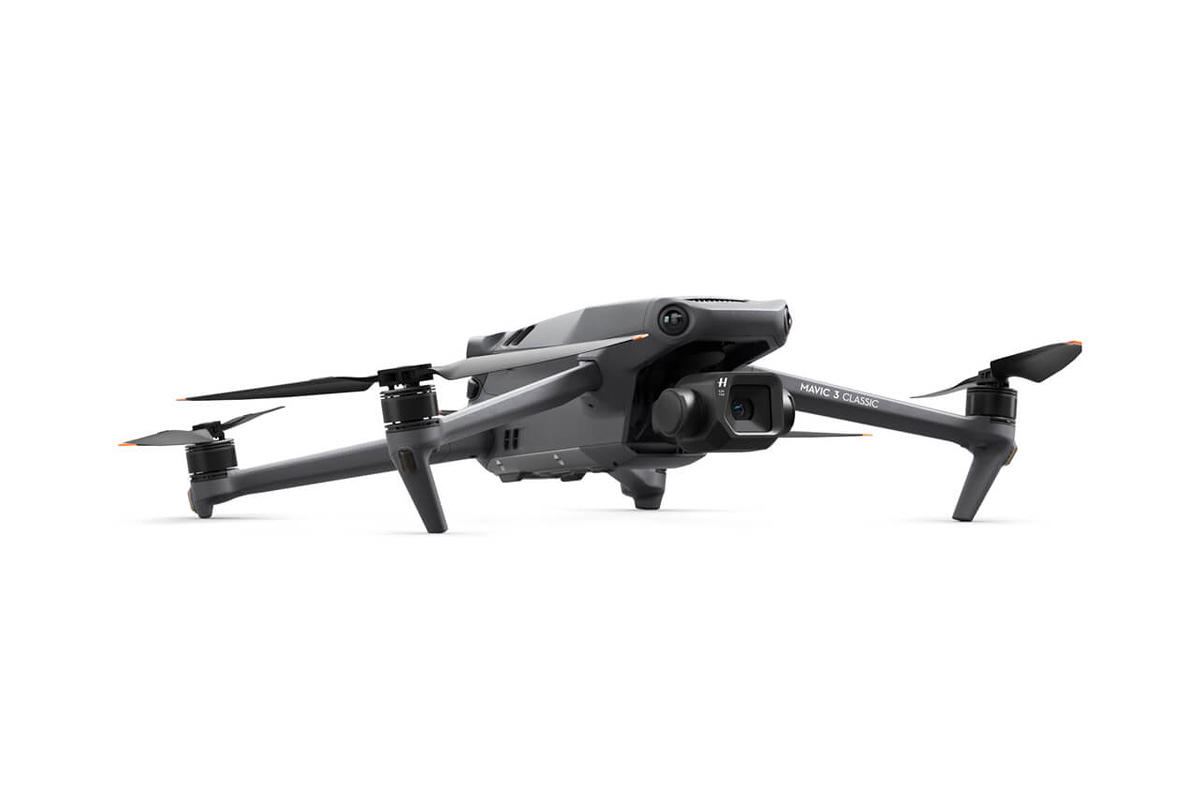

Aircraft
Takeoff Weight
895 g
Dimensions
Folded (without propellers): 221×96.3×90.3 mm (L×W×H)
Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)
Max Ascent Speed
8 m/s
Max Descent Speed
6 m/s
Max Horizontal Speed (at sea level, no wind)
21 m/s
Max Takeoff Altitude
6000 m
Max Flight Time
46 minutes
Max Hovering Time
40 minutes
Max Flight Distance
30 km
Max Wind Speed Resistance
12 m/s
Max Tilt Angle
35°
Operating Temperature
-10° to 40° C
Global Navigation Satellite System
GPS + Galileo + BeiDou
Hovering Accuracy Range
Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GNSS positioning)
Horizontal:
±0.3 m (with vision positioning)
±0.5 m (with high-precision positioning system)
Internal Storage
8 GB (approx. 7.9GB available space)
Hasselblad Camera
Image Sensor
4/3 CMOS, Effective Pixels: 20 MP
Lens
FOV: 84°
Format Equivalent: 24 mm
Aperture: f/2.8-f/11
Focus: 1 m to ∞
ISO Range
Video:
Normal, Slow-motion:
100-6400 (normal color)
400-1600 (D-Log)
100-1600 (HLG)
Night Mode:
800-12800 (normal color)
Photo:
100-6400
Shutter Speed
Electronic Shutter: 8-1/8000 s
Max Image Size
5280×3956
Still Photography Modes
Single Shot: 20 MP
Burst Shooting: 20 MP, 3/5/7 frames
Automatic Exposure Bracketing (AEB): 20 MP, 3/5 frames at 0.7 EV step
Timed: 20 MP, 2/3/5/7/10/15/20/30/60 s
Photo Format
JPEG/DNG (RAW)
Video Resolution
H.264/H.265
5.1K: 5120×2700@24/25/30/48/50 fps
DCI 4K: 4096×2160@24/25/30/48/50/60/120* fps
4K: 3840×2160@24/25/30/48/50/60/120* fps
FHD: 1920×1080@24/25/30/48/50/60/120*/200* fps
Video Format
MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Max Video Bitrate
H.264/H.265: 200 Mbps
Supported File System
exFAT
Color Mode
Normal/HLG/D-Log
Digital Zoom
3×
Gimbal
Stabilization
3-axis mechanical gimbal (tilt, roll, pan)
Mechanical Range
Tilt: -135° to 100°
Roll: -45° to 45°
Pan: -27° to 27°
Controllable Range
Tilt: -90° to 35°
Pan: -5° to 5°
Max Control Speed (tilt)
100°/s
Angular Vibration Range
±0.007°
Sensing
Sensing Type
Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft
Forward
Measurement Range:
0.5-20 m
Detection Range:
0.5-200 m
Effective Sensing Speed:
Flight Speed ≤ 15 m/s
FOV:
Horizontal 90°, Vertical 103°
Backward
Measurement Range:
0.5-16 m
Effective Sensing Speed:
Flight Speed ≤ 12 m/s
FOV:
Horizontal 90°, Vertical 103°
Lateral
Measurement Range:
0.5-25 m
Effective Sensing Speed:
Flight Speed ≤ 15 m/s
FOV:
Horizontal 90°, Vertical 85°
Upward
Measurement Range:
0.2-10 m
Effective Sensing Speed:
Flight Speed ≤ 6 m/s
FOV:
Front and Back 100°, Left and Right 90°
Downward
Measurement Range:
0.3-18 m
Effective Sensing Speed:
Flight Speed ≤ 6 m/s
FOV:
Front and Back 130°, Left and Right 160°
Operating Environment
Forward, Backward, Left, Right, and Upward:
surfaces with discernible patterns and adequate lighting (lux >15)
Downward:
surfaces with discernible patterns, diffuse reflectivity >20% (e.g. walls, trees, people), and adequate lighting (lux >15)
Video Transmission
Video Transmission System
O3+
Live View Quality
Remote Controller:
1080p/30fps, 1080p/60fps
Operating Frequency
2.400-2.4835 GHz
5.725-5.850 GHz
Transmission Power (EIRP)
2.400-2.4835 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.725-5.850 GHz:
< 33 dBm (FCC)
< 30 dBm (SRRC)
< 14 dBm (CE)
Max Transmission Distance (free of interference)
FCC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km
Max Transmission Distance (with interference)
Strong Interference: urban landscape, approx. 1.5-3 km
Medium Interference: suburban landscape, approx. 3-9 km
Low Interference: suburb/seaside, approx. 9-15 km
Max Download Speed
O3+:
5.5 MB/s (with DJI RC-N1 Remote Controller)
15 MB/s (with DJI RC Pro)
5.5 MB/s (with DJI RC)
Wi-Fi 6: 80 MB/s
Lowest Latency
130 ms (with DJI RC-N1 Remote Controller)
120 ms (with DJI RC Pro)
130 ms (with DJI RC)
Antennas
4 antennas, 2T4R
Battery
Capacity
5000 mAh
Weight
335.5 g
Nominal Voltage
15.4 V
Charging Voltage Limit
17.6 V
Type
Li-ion 4S
Energy
77 Wh
Charging Temperature
5° to 40° C
Charging Time
Approx. 96 minutes
Charger
Input
100-240 V (AC), 47-63 Hz, 2 A
Output
USB-C:
5 V, 5 A
9 V, 5 A
12 V, 5 A
15 V, 4.3 A
20 V, 3.25 A
5-20 V, 3.25 A
USB-A:
5 V, 2 A
Rated Power
65 W
Battery Charging Hub
Input
USB-C: 5-20 V, max 5 A
Output
Battery Port: 12-17.6 V, max. 5 A
Rated Power
DJI Mavic 3 Battery Charging Hub: 65 W
DJI Mavic 3 Battery Charging Hub (100W): 100 W
Charging Type
Three batteries charged in sequence
Compatibility
DJI Mavic 3 Intelligent Flight Battery
Car Charger
Input
Car Power Input:
12.7-16 V, 6.5 A, rated voltage 14 V (DC)
Output
USB-C:
5 V, 5 A
9 V, 5 A
12 V, 5 A
15 V, 4.3 A
20 V, 3.25 A
5-20 V, 3.25 A
USB-A:
5 V, 2 A
Rated Power
65 W
Charging Temperature
5° to 40° C
Storage
Recommended microSD Cards
Lexar 1066x 64GB V30 A2 microSDXC
Lexar 1066x 128GB V30 A2 microSDXC
Lexar 1066x 256GB V30 A2 microSDXC
Lexar 1066x 512GB V30 A2 microSDXC
SanDisk High Endurance 64GB V30 microSDXC
SanDisk High Endurance 128GB V30 microSDXC
SanDisk High Endurance 256GB V30 microSDXC
Kingston Canvas Go! Plus 64GB V30 A2 microSDXC
Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
Kingston Canvas Go! Plus 256GB V30 A2 microSDXC
Kingston Canvas Go! Plus 512GB V30 A2 microSDXC
Samsung EVO Plus 512GB V30 A2 microSDXC
Samsung PRO Plus 256GB V30 A2 microSDXC
Samsung PRO Plus 512GB V30 A2 microSDXC
