Aircraft
Takeoff Weight
248 g
Dimensions

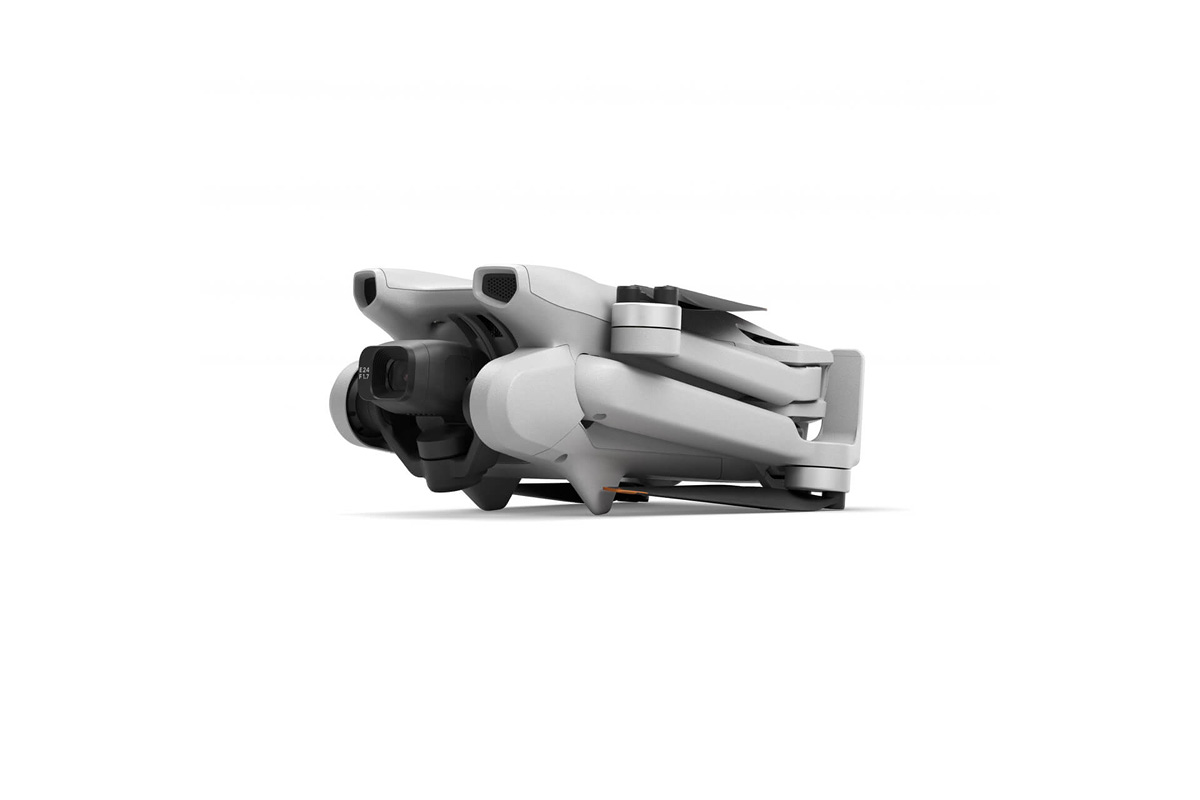

Folded (without propellers): 148×90×62 mm (L×W×H)
Unfolded (with propellers): 251×362×72 mm (L×W×H)
Max Ascent Speed
5 m/s
Max Descent Speed
3.5 m/s
Max Horizontal Speed (at sea level, no wind)
16 m/s
Max Takeoff Altitude
With Intelligent Flight Battery: 4000 m
Max Flight Time
38 minutes (with Intelligent Flight Battery)
Max Hovering Time
33 minutes (with Intelligent Flight Battery)
Max Flight Distance
18 km (with Intelligent Flight Battery and measured while flying at 43.2 kph in windless conditions)
Max Wind Speed Resistance
10.7 m/s (Level 5)
Max Tilt Angle
40°
Operating Temperature
-10° to 40° C
Global Navigation Satellite System
GPS + GLONASS + Galileo
Hovering Accuracy Range
Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GNSS positioning)
Horizontal:
±0.3 m (with vision positioning)
±1.5 m (with GNSS positioning)
Internal Storage
N/A
Camera
Image Sensor1/1.3-inch CMOS
Effective Pixels: 12 MP
Lens
FOV: 82.1°
Format Equivalent: 24 mm
Aperture: f/1.7
Focus: 1 m to ∞
ISO Range
Video:
100-3200
Photo:
100-3200
Shutter Speed
Electronic Shutter: 2-1/8000 s
Max Image Size
4000×3000
Still Photography Modes
Single Shot: 12 MP
Timed: 12 MP
JPEG: 2/3/5/7/10/15/20/30/60 s
JPEG + RAW: 5/7/10/15/20/30/60 s
Automatic Exposure Bracketing (AEB): 12 MP, 3 frames at 2/3 EV step
Panorama: Sphere, 180°, Wide Angle
HDR: The Single Shot mode supports outputting HDR images.
Photo Format
JPEG/DNG (RAW)
Video Resolution
4K: 3840×2160@24/25/30 fps
2.7K: 2720×1530@24/25/30/48/50/60 fps
FHD: 1920×1080@24/25/30/48/50/60 fps
HDR: Recording with the 24/25/30fps frame rate supports outputting HDR images.
Video Format
MP4 (H.264)
Max Video Bitrate
100 Mbps
Supported File System
FAT32 (≤ 32 GB)
exFAT (> 32 GB)
Color Mode
Normal
Digital Zoom
4K: 2×
2.7K: 3×
FHD: 4×
QuickShots Modes
Dronie, Helix, Rocket, Circle, and Boomerang
Gimbal
Stabilization3-axis mechanical gimbal (tilt, roll, and pan)
Mechanical Range
Tilt: -135° to 80°
Roll: -135° to 45°
Pan: -30° to 30°
Controllable Range
Tilt: -90° to 60°
Roll: -90° or 0°
Max Control Speed (tilt)
100°/s
Angular Vibration Range
±0.01°
Sensing
Sensing TypeDownward vision system
Downward
Precise Hovering Range:
0.5-10 m
Operating Environment
Downward:
Diffuse reflective surfaces with a clear pattern and reflectivity > 20% (such as walls, trees, or people)
Adequate lighting (lux > 15, normal indoor lighting conditions)
Video Transmission
Video Transmission SystemDJI O2
Live View Quality
Remote Controller:
720p/30fps
Operating Frequency
2.400-2.4835 GHz
5.725-5.850 GHz
Transmission Power (EIRP)
2.400-2.4835 GHz:
< 26 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.725-5.850 GHz:
< 26 dBm (FCC/SRRC)
< 14 dBm (CE)
Max Transmission Distance (free of interference)
FCC: 10 km
CE: 6 km
SRRC: 6 km
MIC: 6 km
Max Transmission Distance (with interference)
Strong Interference: urban landscape, approx. 1.5-3 km
Medium Interference: suburban landscape, approx. 3-6 km
Low Interference: suburb/seaside, approx. 6-10 km
Max Download Speed
DJI O2:
5.5 MB/s (with DJI RC-N1 Remote Controller)
5.5 MB/s (with DJI RC)
Wi-Fi 5: 25 MB/s
Lowest Latency
Approx. 200 ms
Antenna
2 antennas, 1T2R
Battery
CapacityIntelligent Flight Battery: 2453 mAh
Weight
Intelligent Flight Battery: Approx. 80.5 g
Nominal Voltage
7.38 V
Max Charging Voltage
8.5 V
Type
Li-ion
Energy
Intelligent Flight Battery: 18.1 Wh
Charging Temperature
5° to 40° C
Charging Time
Intelligent Flight Battery:
64 minutes (with the DJI 30W USB-C Charger and the battery mounted to the aircraft)
56 minutes (with the DJI 30W USB-C Charger and the battery inserted into the Two-Way Charging Hub)
Charger
Recommended Charger
DJI 30W USB-C Charger or other USB Power Delivery chargers (30 W)*
* When you charge the battery mounted to the aircraft or inserted into the Two-Way Charging Hub, the maximum charging power supported is 30 W.
Charging Hub
Input5 V, 3 A
9 V, 3 A
12 V, 3 A
Output
USB-A: Max Voltage: 5 V; Max Current: 2 A
Charging Type
Three batteries charged in sequence
Storage
Recommended microSD CardsSanDisk Extreme 32GB V30 A1 microSDXC
SanDisk Extreme 64GB V30 A1 microSDXC
SanDisk Extreme 128GB V30 A2 microSDXC
SanDisk Extreme 256GB V30 A2 microSDXC
SanDisk Extreme Pro 32GB V30 A1 microSDXC
Kingston Canvas Go!Plus 64GB V30 A2 microSDXC
Kingston Canvas Go!Plus 128GB V30 A2 microSDXC
Kingston Canvas Go!Plus 256GB V30 A2 microSDXC
Kingston Canvas React Plus 64GB V30 A1 microSDXC
Kingston Canvas React Plus 128GB V30 A1 microSDXC
Samsung PRO Plus 256GB V30 A2 microSDXC
