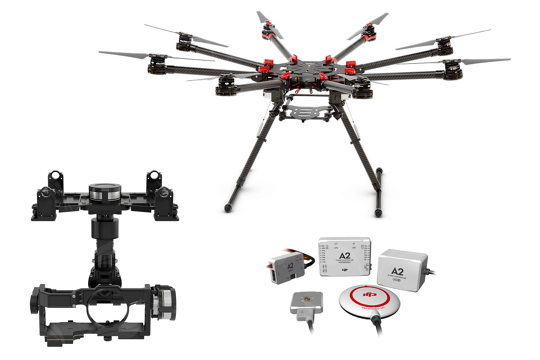

DJI S1000+ & A2 & GH4 orlaivio kompletas

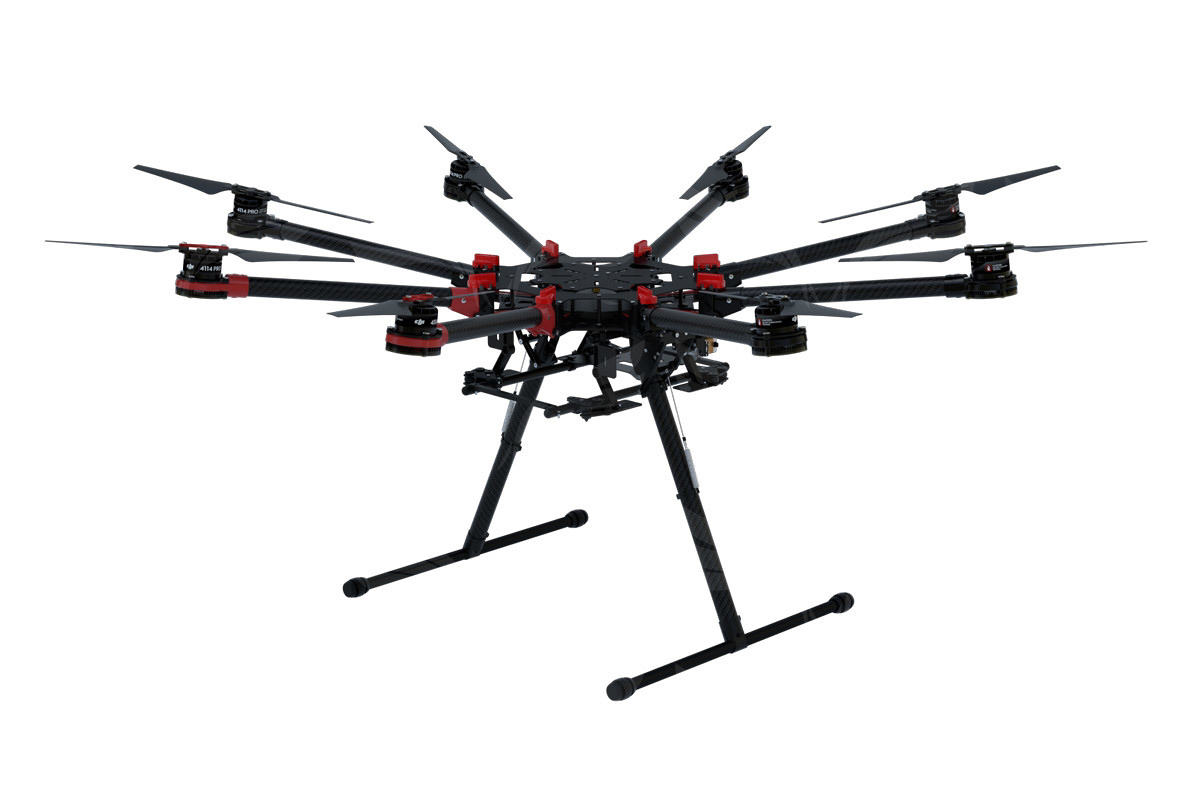

Spreading Wings S1000+

• LARGE CARRYING CAPACITY, STRONG AND STABLE
  Free yourself from weight limits and fly with heavy DSLR cameras such as the 5D Mark III with the advanced eight-rotor propulsion system of the S1000+. The S1000+’s arms and landing gear are made of sturdy carbon fiber, giving remarkable stability and strength. You’re flying in a variety of flight conditions with confidence, knowing your gear is safe.
• HIGHLY PORTABLE, WITH FOLDABLE ARMS
  With arms that fold in to save space, the S1000+ is built to be taken wherever you need to go. Then when you want to fly, you are ready to start shooting in just a few minutes.
• REMOVABLE UPPER CENTER BOARD
  The upper center board can be removed, giving you access to the IMU. Additionally, there are eight positions reserved for your extra equipment. So installation of your main controller, iOSD, Lightbridge, or any other accessories is faster and easier than ever before.
  This new center board structure is perfectly compatible with the DJI WKM and A2 flight controllers.
• NEW POWER DISTRIBUTION SYSTEM
  A redesigned, rebuilt power distribution system improves safety and reliability. Gold-plated metal bearings with a unique screw design secure the power cords, ensuring cables will not come loose during flight and allowing easy setup.
• SPARKPROOF PLUG
  Prevent short circuits and easily plug in your power supply with the AS150 sparkproof plug.
• PROFESSIONAL QUALITY
  Weighing just 4.4kg, the S1000+ has a maximum takeoff weight of 11kg. This means you can easily carry most cameras and gimbals, including your 5D Mark III. Used with a 6S 15000mAh battery, it can fly for up to 15 minutes.
• WIDE RANGE OF SHOOTING ANGLES
  Retractable landing gear and a low gimbal mounting bracket combine to enable a wide range of possible shooting angles and camera motions.
• COMPATIBLE WITH ZENMUSE GIMBALS
  Full compatibility with DJI’s entire line of Zenmuse Z15 camera gimbals, including the new Z15-5D III (HD), provides unmatched stability in flight.
• REDUCED VIBRATIONS, CLEARER FOOTAGE
  The S1000+’s gimbal bracket is separated from the main frame by specifically designed dampers. This significantly reduces high-frequency vibrations and makes your shots clearer and sharper.
• GREATER POWER
  A 40A electronic speed controller (ESC), our fastest available, is built in to each arm. The 4114 pro motors, high performance 1552 folding propellers, and V-type mixer design combine to give each arm of the S1000+ a maximum thrust of 2.5Kg.
  Our latest motor adopts a single wire stator design, offering improved heat dissipation, better performance, and a tidier, more reliable system.
• INNOVATIVE ARM DESIGN
  Each arm is designed with an 8° inversion and a 3° inclination, making the aircraft more stable when rolling and pitching, yet more flexible when rotating.

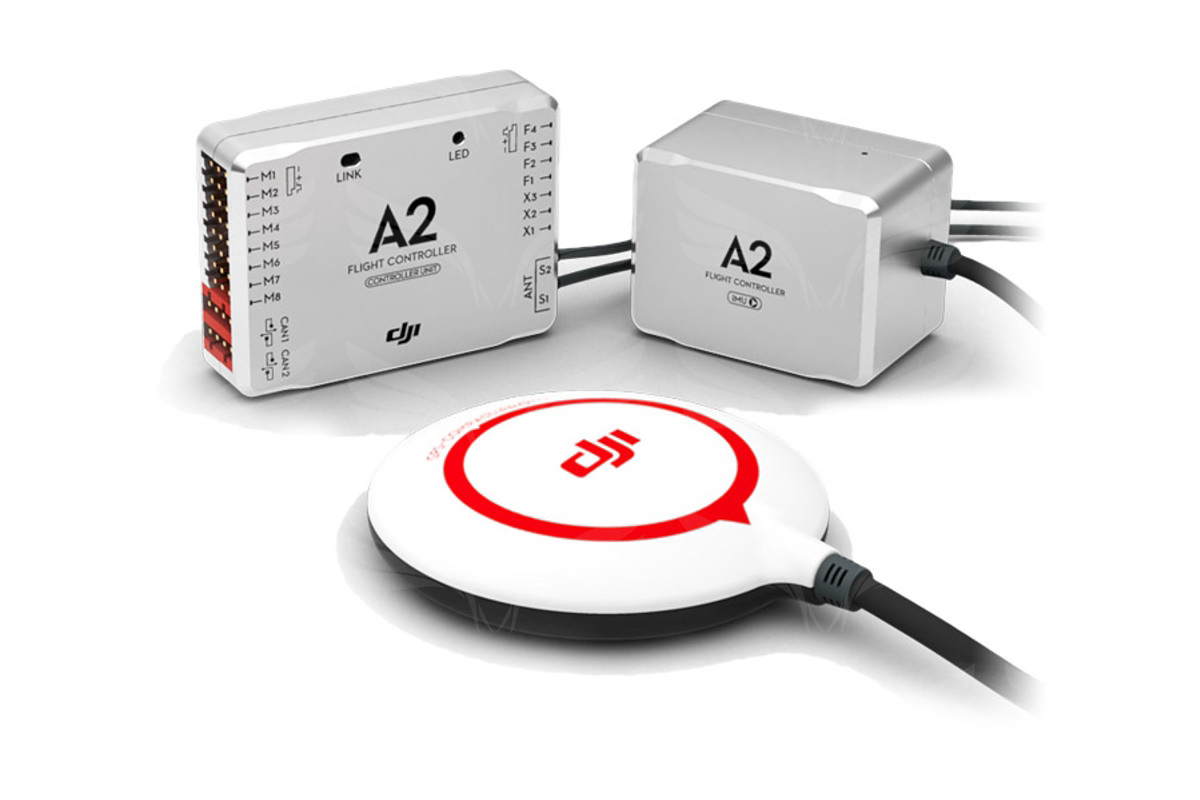

A2

Advanced Stabilization Controller
The extraordinary precision of the A2 sets a new standard in flight control by providing a complete, stable flight system for a wide variety of multi-rotor platforms.

"9 Multi-Rotor Configurations & Customized Motor Mixer"
"The A2 was designed for commercial and industrial multi-rotor platforms. Simple configuration, easy installation, and stable performance make it perfect for almost any application. The A2 also supports customized motor mixing, which allows it to meet the specific demands of individual users.
The A2 supports nine different motor configurations: Quad I / Quad X / Hex I / Hex V / Hex IY / Oct X / Oct I / Oct V"

Intelligent Orientation Control (IOC)
"Usually, the forward flight direction corresponds with the aircraft's nose direction. Intelligent Orientation Control (IOC) allows the forward direction to be set to any specified direction, regardless of how the nose orientation changes during flight.
In Course Lock flying, the forward flight direction is set to correspond with nose direction of the aircraft at the time that Course Lock mode is activated. In Home Lock flying, the forward flight direction is the same as the direction from Home Point to the aircraft."

Point of Interest (POI)
Users can record the position of the aircraft as a Point of Interest, at any time, using a switch on the remote controller. Then, when the left control stick is pushed either left or right, the aircraft can perform a circular flight around the Point of Interest, with its nose pointing toward the POI. This distance from the aircraft to the POI can be set between 16 feet (5 meters) and 1,640 feet (500 meters). This function is easy to set up and simple to operate, making it the ideal solution for when you want to fly 360 degrees around a specific point at a fixed distance.

Intelligent Landing Gear
Once the Intelligent Landing Gear function has been enabled in the Assistant software, the landing gear will be lowered whenever the aircraft is close to the ground. The system will automatically lower the landing gear in the case of an emergency, motor failure, or auto landing event. This serves to protect the aircraft and the gimbal. You can use the switch to manually change the position of the landing gear when the aircraft reaches an altitude of 16 feet (5 meters) or greater.

Auto Return-to-Home
"If the connection between the aircraft and the controller is broken during flight, and the aircraft's GPS signal is strong enough, the aircraft will return to the Home Point and land automatically.
You can also press the Return-to-Home button to manually activate this feature at any time."

"Banked Turn" Mode
In this mode, the roll and yaw control sticks are combined in order to help you perform banked turns using one hand. The aircraft can be maneuvered like a fixed-wing aircraft, thereby providing a new flight experience. Normal and FPV aerial photography are stable and smooth, giving your work a whole new visual effect.

Cruise Control
Activate Cruise Control to lock your aircraft into its current horizontal speed. While cruise control is active, the speed can be adjusted at any time using the remote controller. By maintaining a steady flight speed, you can dedicate more attention to controlling the camera and capture the perfect shot every time. This function also increases the total flight time by eliminating unnecessary speed changes that increase power consumption.

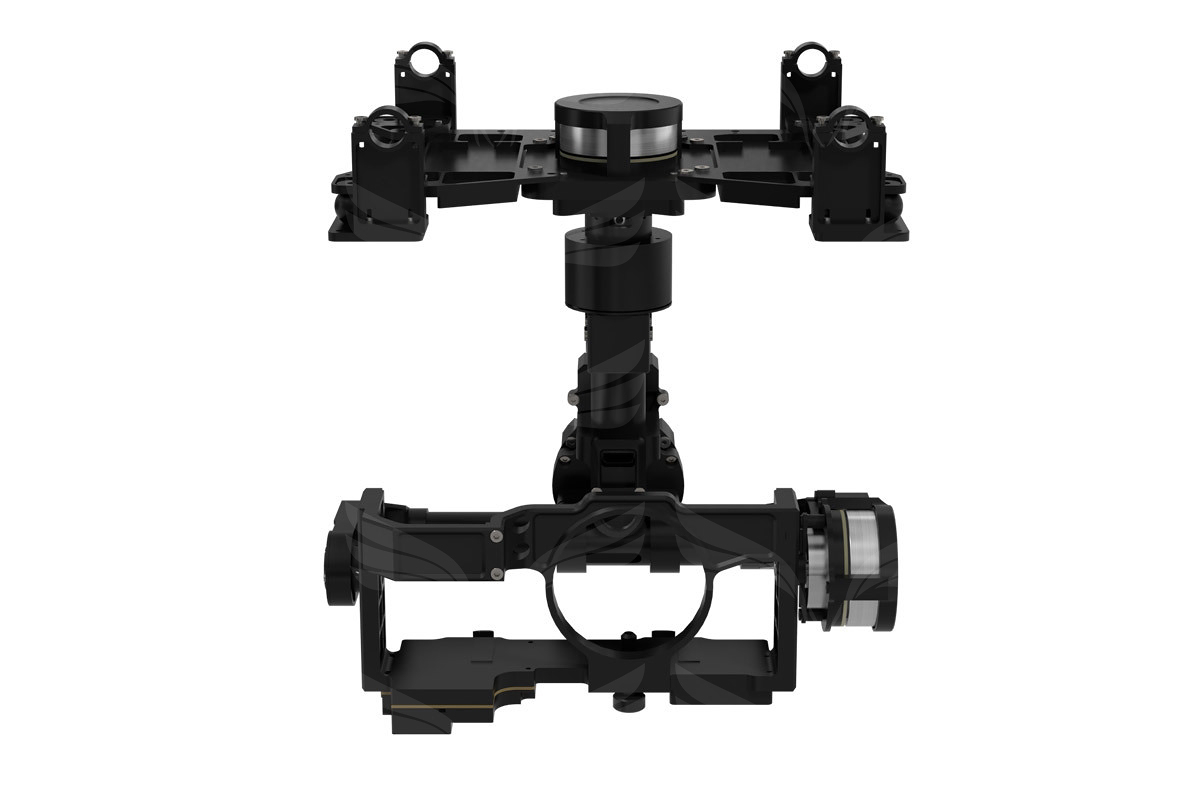

Zenmuse Z15-GH4 (HD)

ANOTHER EVOLUTIONARY 3-AXIS PROFESSIONAL HD GIMBAL
The DJI Zenmuse Z15-GH4 (HD) gimbal, an upgraded version of the popular Zenmuse Z15-GH3, represents a breakthrough in Zenmuse precision, offering a control range of just ±0.01°. When used with a DJI professional aerial system, your Panasonic GH4/GH3 remains stable and under control even in strong winds and during intense maneuvers.

BUILT FOR THE PANASONIC GH4/GH3
Each Zenmuse is guaranteed to deliver nothing short of the best in camera control and stabilization. The Zenmuse Z15-GH4 (HD) is built specifically for the the Panasonic GH4 and GH3, so either camera fits perfectly in the gimbal. The Panasonic GH4 is known for its digital film quality images and small body, making it ideal for aerial cinematography and photography. The Zenmuse Z15-GH4 (HD) gimbal connects with your GH4 through a standard HDMI cable, but if you are using a Panasonic GH3 with the gimbal, please use the included GH3 HDMI cable.

HDMI-HD/AV MODULE
Weight is minimized by using a small video output module that allows you to control the camera shutter and other features while transforming the camera’s HDMI signal into a first-person-view AV signal. Wiring has been kept to a minimum to further reduce weight. You can easily switch between HD and AV output. The HD output works perfectly with the DJI Lightbridge digital video downlink,and the AV output works with a 5.8G analog video downlink.

3-AXIS ROTATION CONTROL
The 3-axis Zenmuse Gimbal system’s creative mechanical design makes control through the transmitter stick both intuitive and easy. Its internal slip rings avoid complicated wiring. Both power and signal lines have been integrated into gimbal’s tubes, resulting in a completely unhindered control axis that offers a maximum yaw of ±360°, pitch of +50°/-140° and a roll of ±40°.

A TOTAL SOLUTION
The Zenmuse Z15-GH4 (HD) is ideal for the S800 EVO, S900 and S1000 flight platform and works with other DJI products including the A2 and WooKong-M multirotor flight controllers. Used with the DJI Lightbridge HD digital video downlink or an iOSD Mark II and a 5.8G video link, it is a Total Solution for aerial photography and cinematography.

MULTIPLE CONTROL MODES
Three camera control modes are offered to maximize creativity and ease of flight. Orientation-locked, Non Orientation-locked and Back to Mid-point (Horizontal). All three modes can be switched between, quickly and easily in line with the needs of each shoot.

GIMBAL SERVO DRIVE MODULE
What gives every Zenmuse its precision is our specially designed Gimbal Servo Drive Module. Each of these is tailored to the weight and balance of the camera it has been designed to move. This significantly improves control and stability, maximizes torque, while minimizing vibration.

BUILT-IN INDEPENDENT IMU MODULE
A new stabilizing algorithm providing more stability than ever before and extremely precise induction devices combine to create effortless attitude control. With these in place, the S1000 needs no extra equipment installation or wiring, making it easier to get shooting faster.
