DJI Enterprise

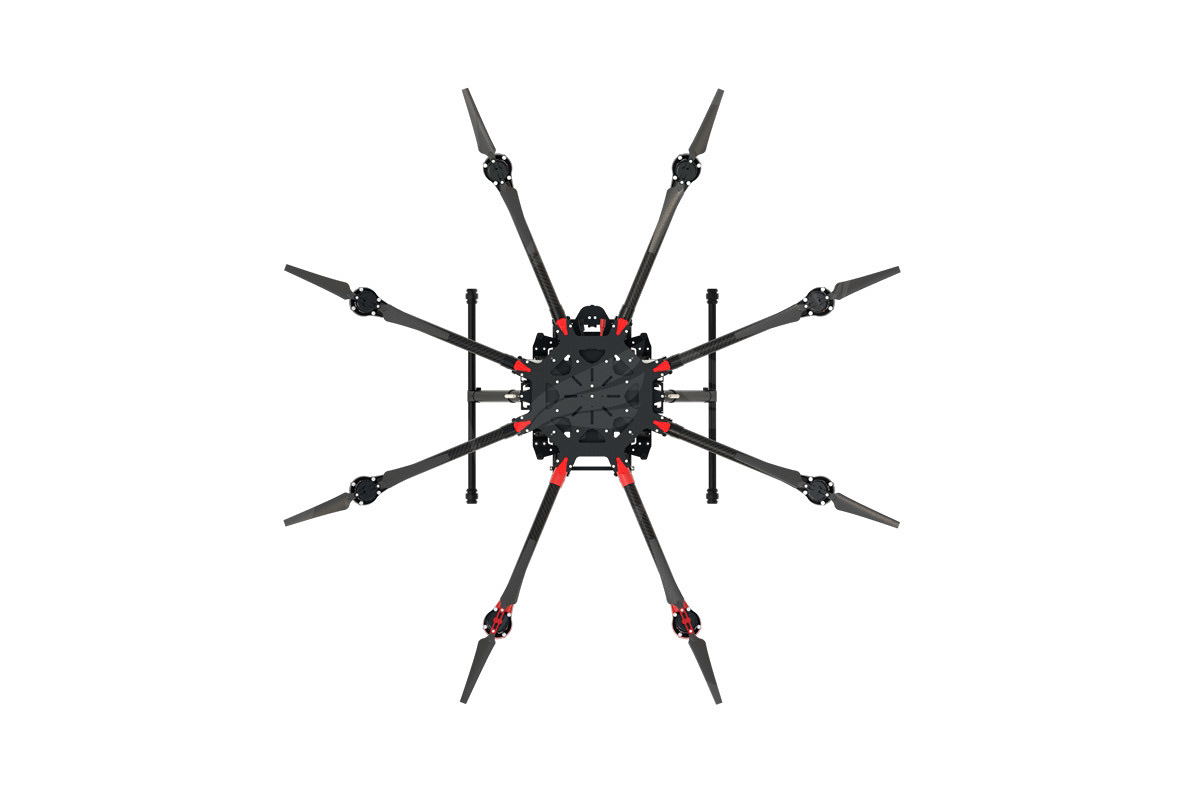

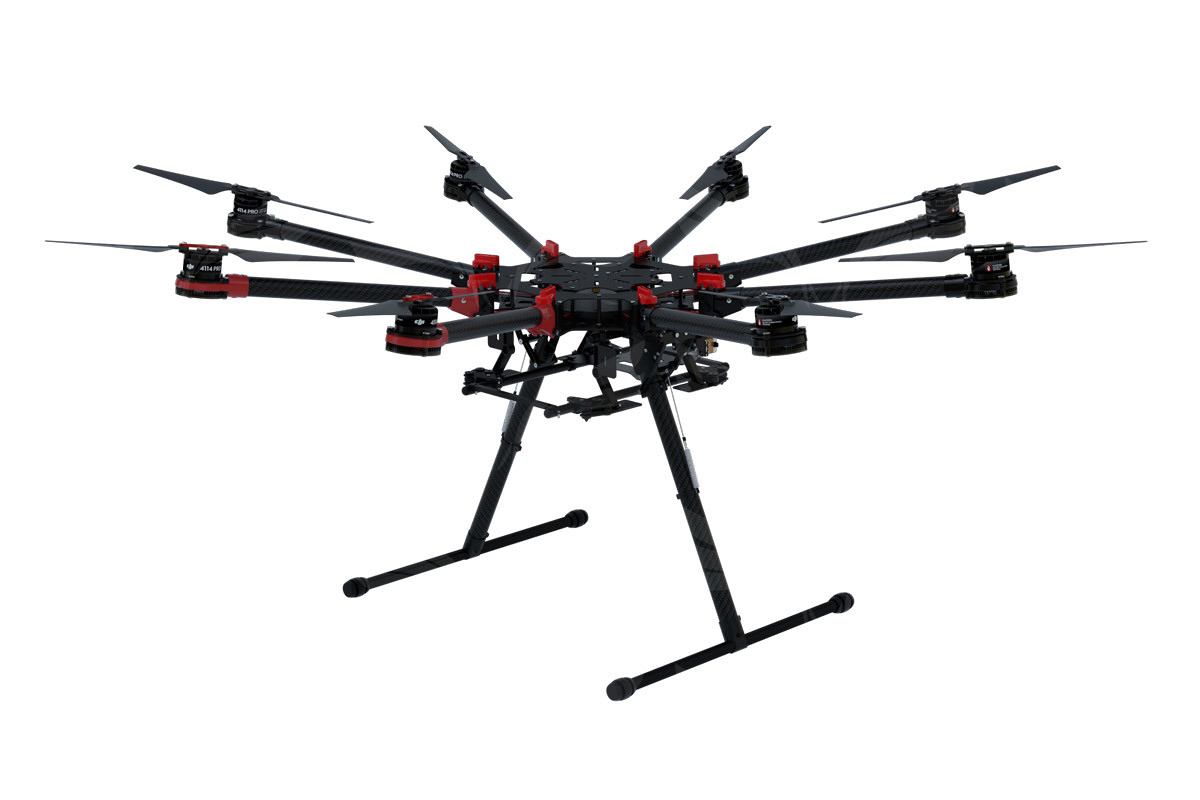

Frame | Diagonal Wheelbase1045mm Frame Arm Length386mm Frame Arm Weight |
---|---|
Motor | Stator Size41×14mm KV400rpm/V Max Power500W Weight(With Cooling Fan)158g |
ESC | Working Current40A Working Voltage6S LiPo Signal Frequency30Hz ~ 450Hz Drive PWM Frequency8KHz Weight(With Radiators)35g |
Foldable Propeller (1552/1552R) | MaterialHigh strength performance engineered plastics Size15×5.2inch Weight13g |
Flight Parameters | Takeoff Weight6.0Kg ~ 11.0Kg Total Weight4.4Kg Power BatteryLiPo (6S,10000mAh~20000mAh,15C(Min)) Max Power Consumption4000W Hover Power Consumption1500W (@9.5Kg Takeoff Weight) Hover Time15min (@15000mAh & 9.5Kg Takeoff Weight) Working Environment Temperature-10 °C ~ +40 °C |
Gain Value Settings | For A2 Flight ControllerBasic: Roll 120%, Pitch 120%, Yaw 120% Attitude: Roll 170%, Pitch 170%, Vertical 120% For WooKong-M Flight ControllerBasic: Roll 130%, Pitch 130%, Yaw 120% Attitude: Roll 180%, Pitch 180%, Vertical 120% |
Size and Weight | ![]() |
---|---|
Basic Performance | Multi Rotor TypesQuad-Rotor: +4,x4; Hex-Rotor +6,x6,Y6,Rev Y6; Octo-Rotor +8,x8,V8 Supported ESC Output400Hz refresh frequencys Recommended TransmitterPCM or 2.4GHz with minimum 7 channels and Failsafe function available on all channels Recommended Battery2S~6S LiPo Power ConsumptionMAX 5W (0.9A@5V, 0.7A@5.8V,0.5A@7.4V,0.4A@8V) Operating Temperature-5°C to +60°C (You have to keep the IMU warm if you want to use it under low temperature, could be -5°Cor lower) Assistant Software System RequirementWindows XP sp3 / Windows 7 / Windows 8 |
Flight Performance | Hovering AccuracyVertical: ± 0.5m Horizontal: ± 2m Suitable Wind Condition< 8m/s (17.9mph/28.8km/h) Max Yaw Angular Velocity150 deg/s Max Tilt Angle35° Ascent/Descent±6m/s |

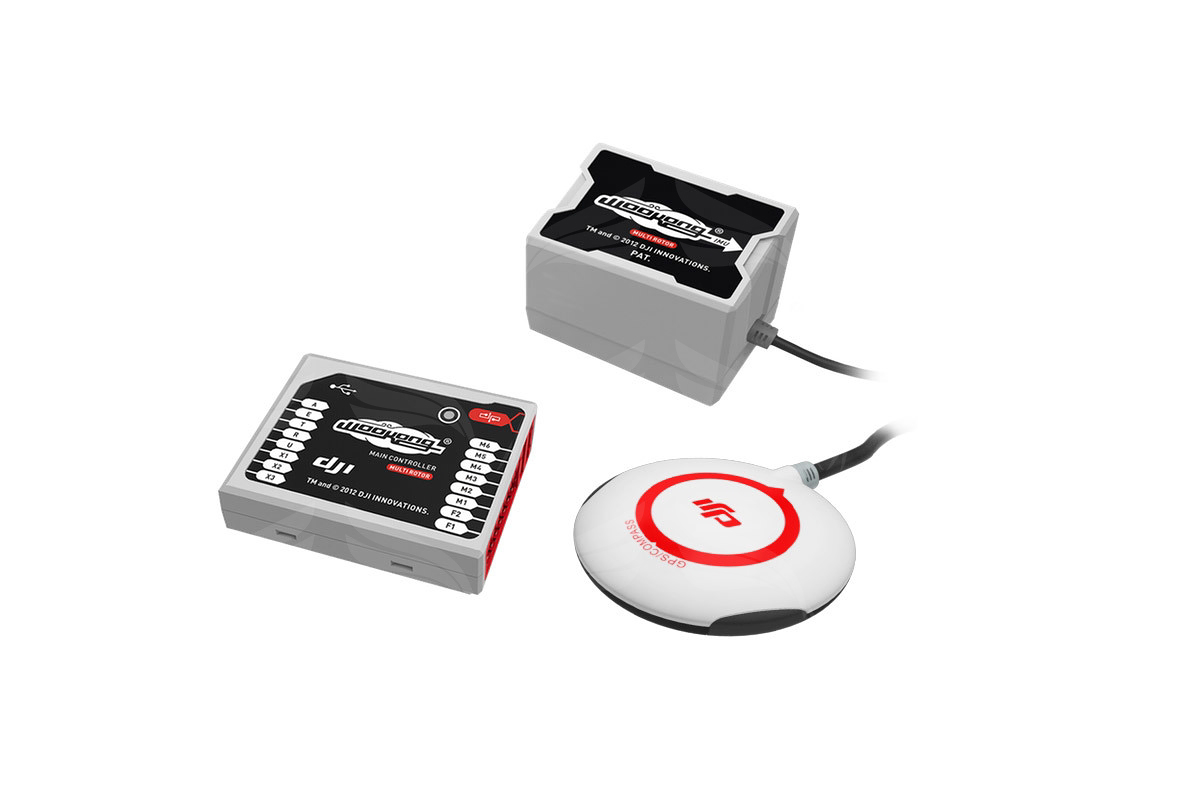

Hardware | WeightTotal Weight: <= 118g(overall) DimensionsMain Controller: 51.2mm x 38.0mm x 15.3mm IMU: 41.4mm x 31.1mm x 27.8mm GPS & Compass: 50mm (diameter) x 9mm LED Indicator: 25mm x 25mm x 7mm PMU: 39.5mm x 27.5mm x 9.7mm Built In FunctionsThree Modes Autopilot Enhanced Failsafe 2-axis Gimbal Support Low Voltage Protection Go Home & Auto Landing D-Bus Receiver Supported Intelligent Orientation Control |
DJI DropSafe para6iuto sistema sumažina pavojų ir žalą kritiniu atveju. Iššauna parašiutą greičiau nei per pusę sekundės, efektyvus jau nuo 6 metrų. Sveria vos 550g ir yra daugkartinio naudojimo.
Triple Modular RedundancyPrecision Controls with Fault-ToleranceCompatible with D-RTK GNSS, Smart ESCs, Intelligent Batteries, and Lightbridge 2DJI SDK CompatibilityPrecise Configuration with DJI Assistant 2
Profesionalus HD transliavimas per 3G-SDI ir mini-HDMI. Realaus laiko 1080p video perdavimas. Komplektacijoje Remote Controller valdymo pultas su integruotu siųstuvu. Vienu metu gali transliuoti du kanalus.
Profesionalus HD transliavimas per 3G-SDI ir mini-HDMI. Realaus laiko 1080p video perdavimas. Komplektacijoje Remote Controller valdymo pultas su integruotu siųstuvu. Vienu metu gali transliuoti du kanalus.
DJI DropSafe para6iuto sistema sumažina pavojų ir žalą kritiniu atveju. Iššauna parašiutą greičiau nei per pusę sekundės, efektyvus jau nuo 6 metrų. Sveria vos 550g ir yra daugkartinio naudojimo.
